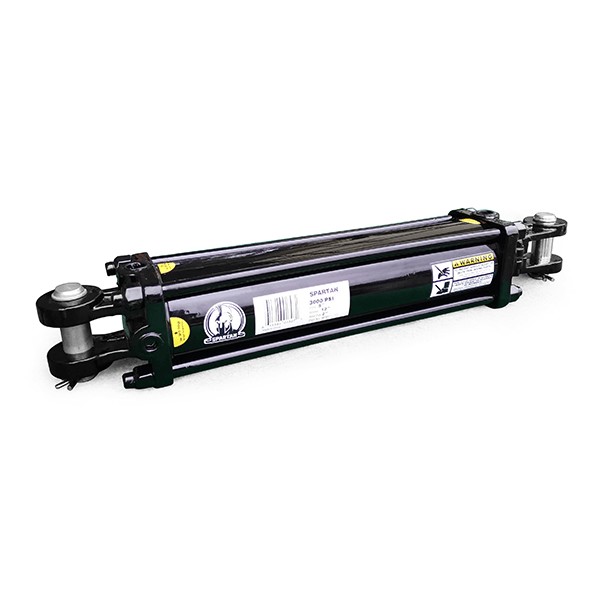

Spartan® 3000 PSI Tie-Rod Cylinder 5" Bore x 20" Stroke x 2" Rod Diameter
Spartan® 3000 PSI hydraulic cylinders are constructed of high strength steel, durable chrome plated rods, endurance tested seal packages to 50,000 cycles, and are 100% performance tested to assure leak free use in any industry. All Spartan cylinders are able to be used in double and single acting applications. This cylinder features a 5" bore diameter, 20” stroke length, 2” hard chrome rod, 1-1/4" clevis pins, and is painted black.
Spartan® 3000 PSI Tie-Rod Cylinder Specifications | ||
Bore Diameter | 5" | |
Stroke Length | 14" | |
Rod Diameter | 2" | |
Retracted Length | 32-1/4" | |
Extended Length | 52-1/4" | |
Pin Diameter | 1-1/4" | |
Port Size | SAE 12 (1-1/16''-12UNF) | |
Working Pressure (maximum) | 3000 PSI | |
Operating Temperature Range (maximums) | -30 to 110 °C (-22 to 230 °F) | |
Weight | 102.52 lbs. | |
Column Load | 58875 lbs. | |

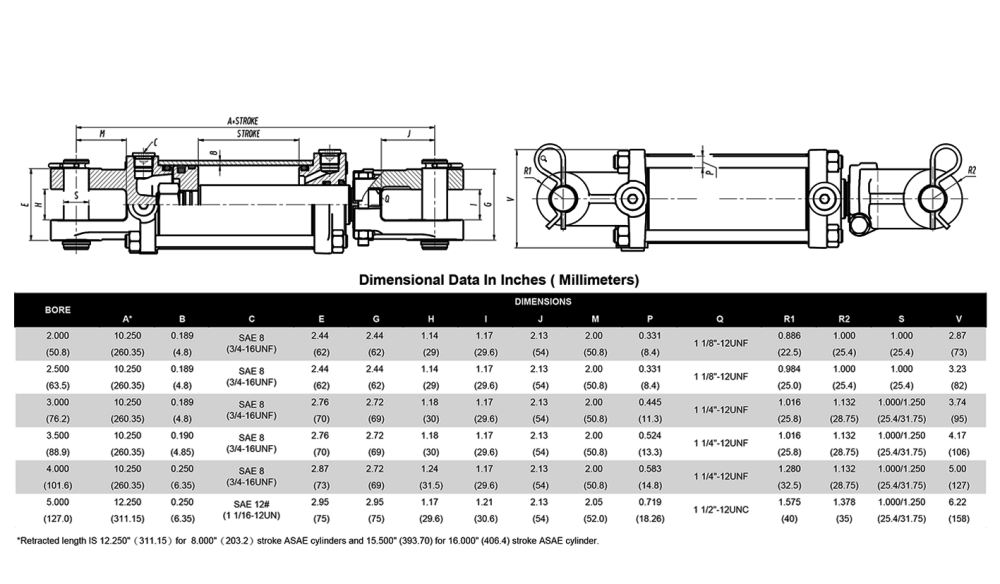

E | 2.95" | |
G | 2.95" | |
H | 1.17" | |
I | 1.21" | |
V | 6.22" |
