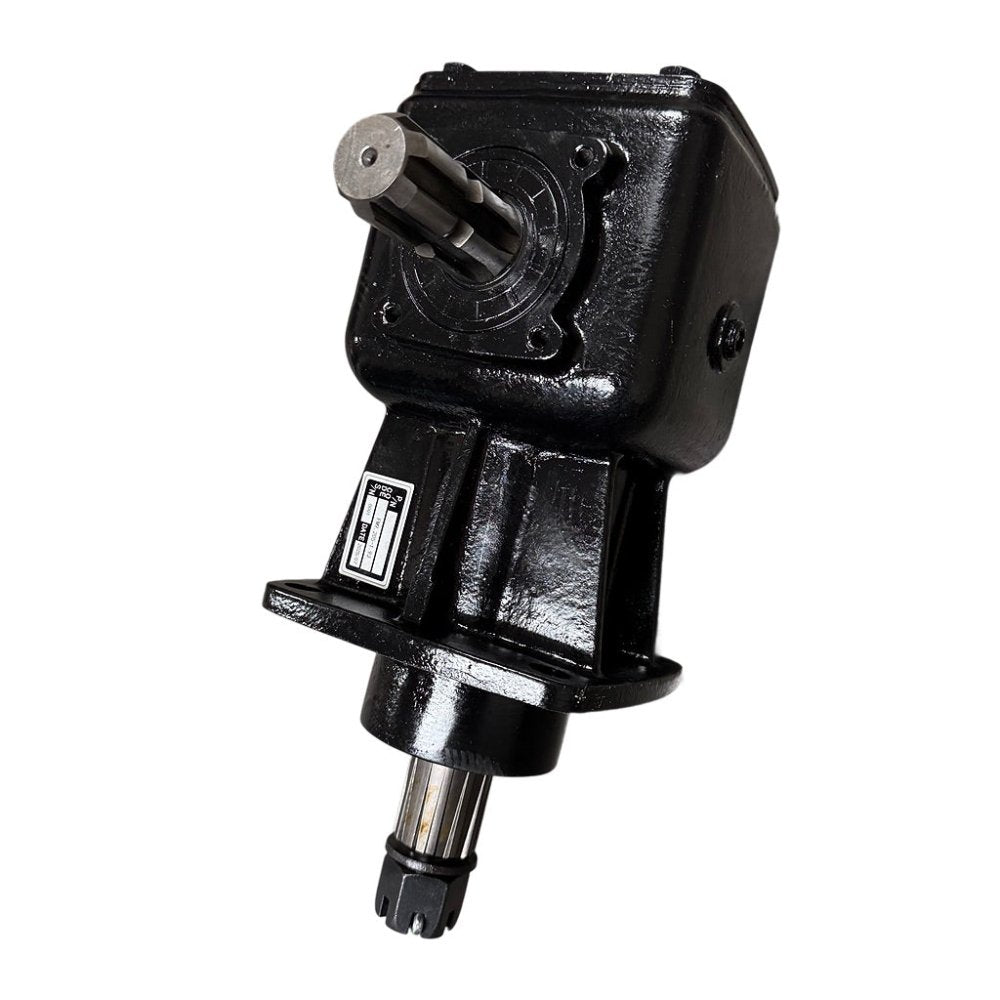

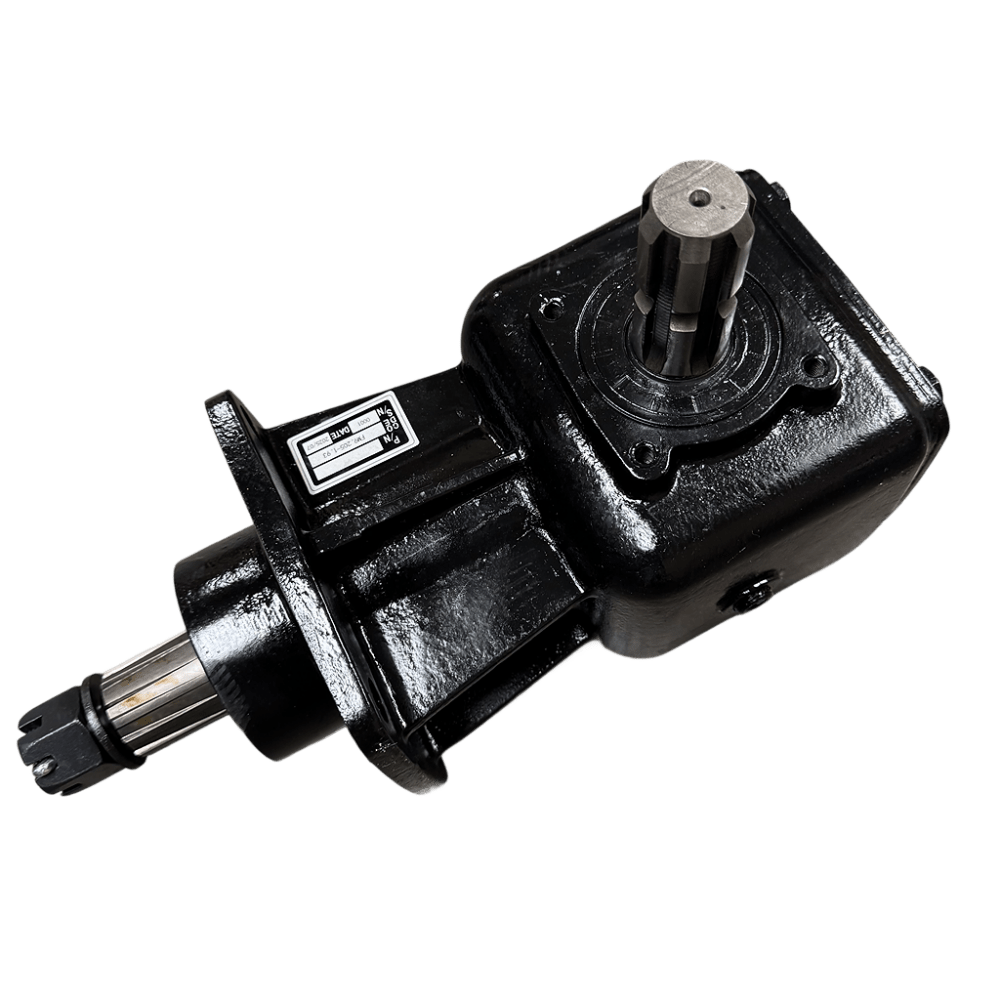

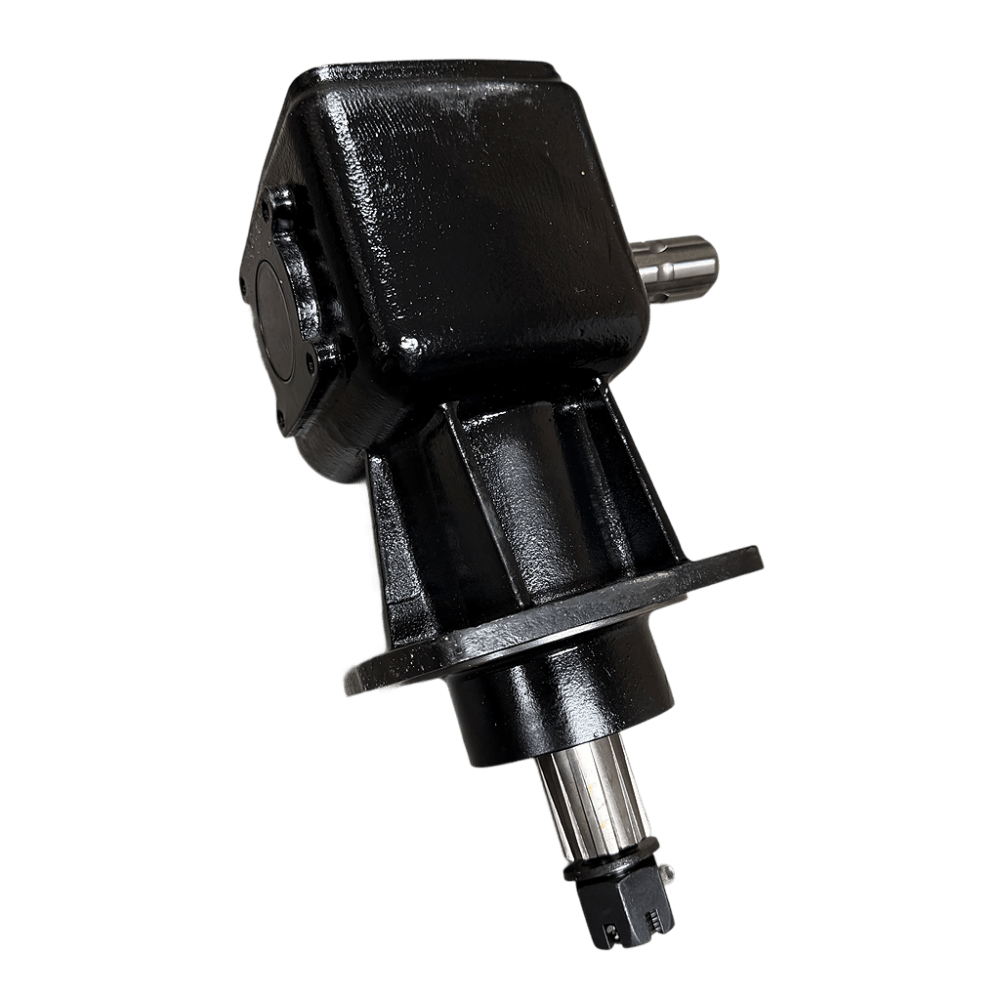

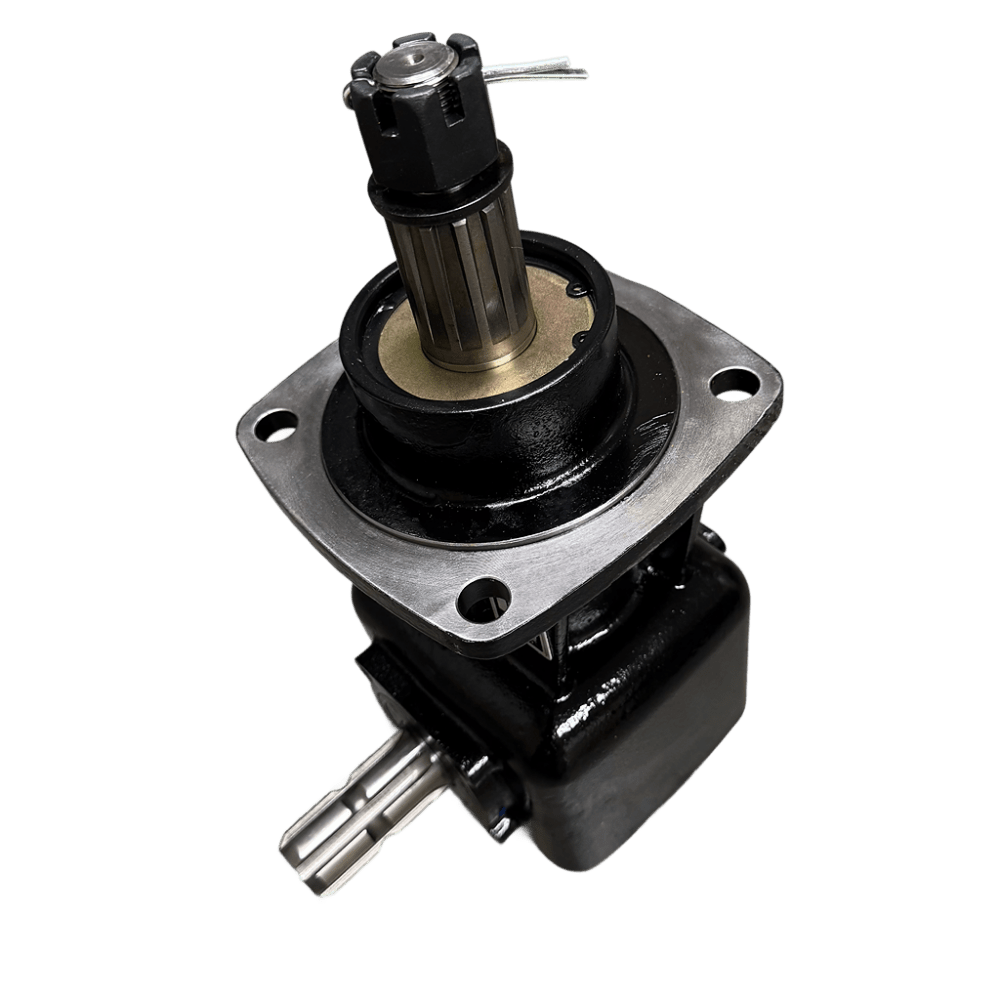

FM45-1.93, 40HP GEARBOX, 1:1.93, 6 SPLINE, fits Wolverine Brush Cutter

SKU: FM45-1.93
$299.99

1-Year Warranty

Ship Next Business Day

Canada Delivery Available

Note: Orders dispatch next day. Delivery timelines are subject to UPS.

1-601-342-5178
CONTACT US VIA EMAIL

Shipping Calculator

Orders dispatch next day.

Orders dispatch next day.
Descriptions

FM45-1.93 / 1:1.93 / 6 Splines

*Horsepower: 40
*For most of Wolverine Brush cutters on skid steer
*Turns both clockwise or counterclockwise
*Comes with the castellated nut
*Housing construction: Ductile iron
*6 Splines input shaft: 1-3/8 in.

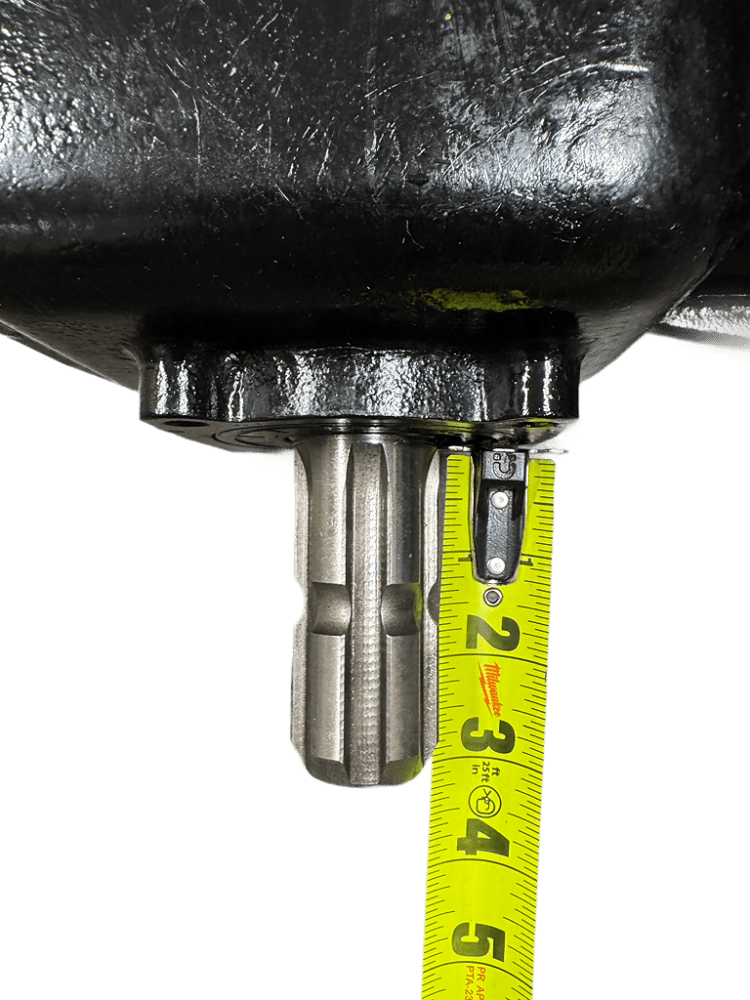

*Input shaft out from the seal: 3"

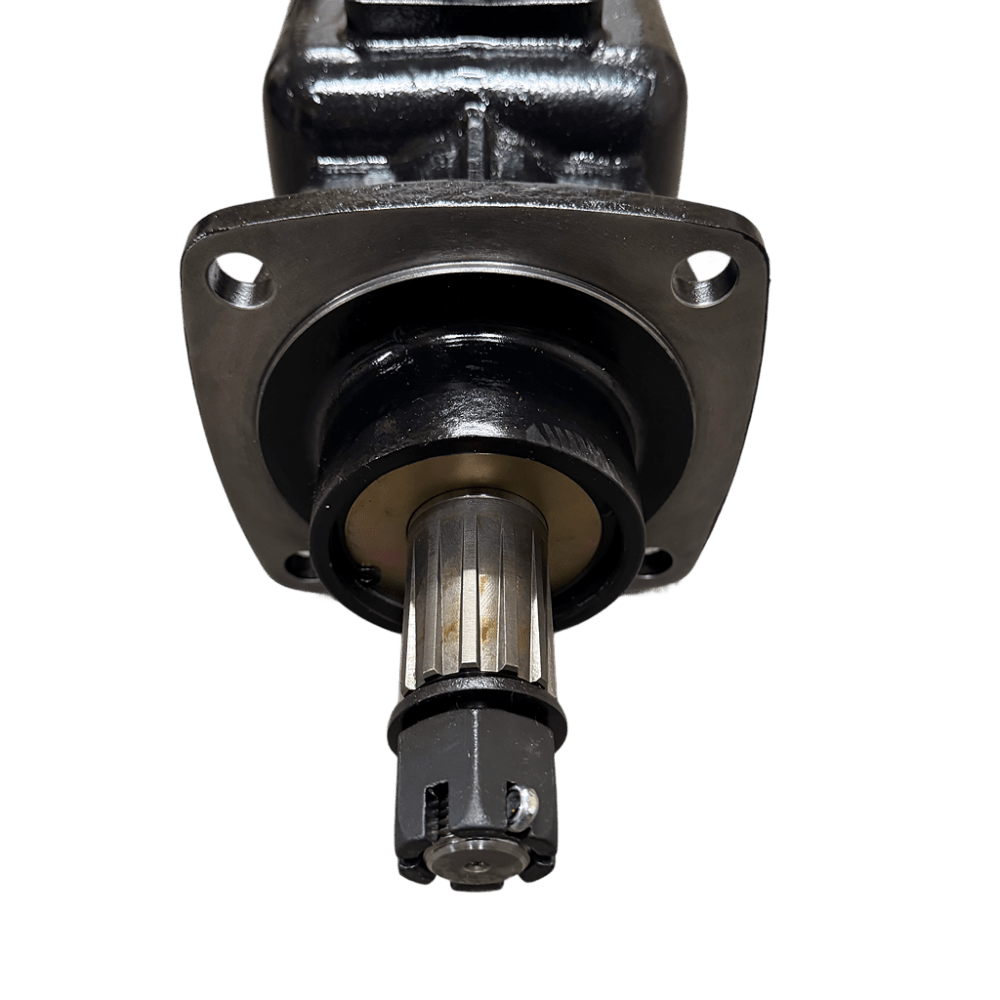

*Output shaft 1.57 in. 12 Spline
*Gear type: Bevel gear
*Bolt pattern: (4) 5/8" diameter holes on a 6-3/4 in. bolt circle
*4-3/4" Bolt Hole Centers for Mounting
*Gear ratio: 1:1.93
*Input Shaft centre to the base flange is 6.43"

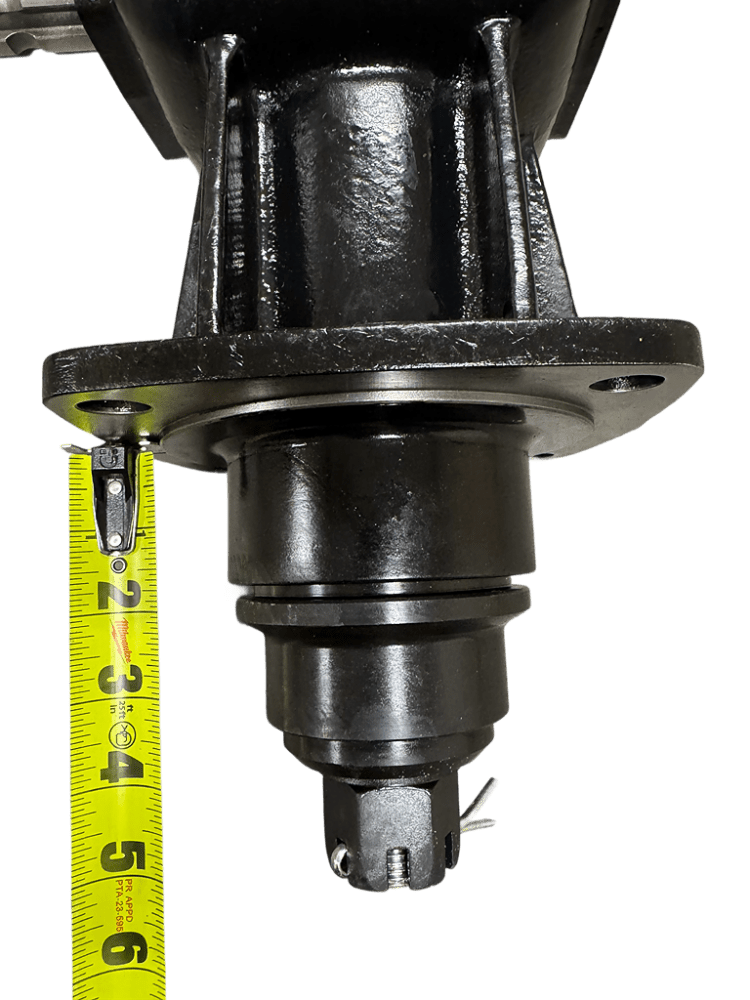

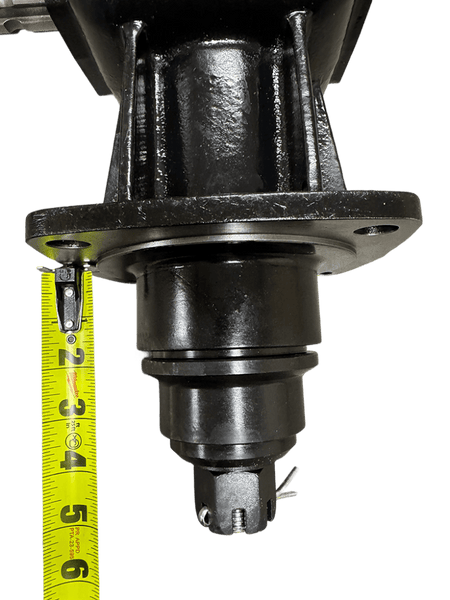

*Output shaft length from the base flange is 5.35"
* Hub is not included
*Shipped dry, please add 16OZ 80-90W gear lube before using

*Weight: 47.30lbs

You can drill new holes for the hydraulic motor bracket to achieve proper spacing with the coupler on the Wolverine brush cutter.
