FM110-1.46, Gearbox Fits Woods Heavy duty BB720 Rotary Mower

SKU: FM110-1.46
$699.99

1-Year Warranty

Ship Next Business Day

Canada Delivery Available

Note: Orders dispatch next day. Delivery timelines are subject to UPS.

1-601-342-5178
CONTACT US VIA EMAIL

Shipping Calculator

Orders dispatch next day.

Orders dispatch next day.
Descriptions

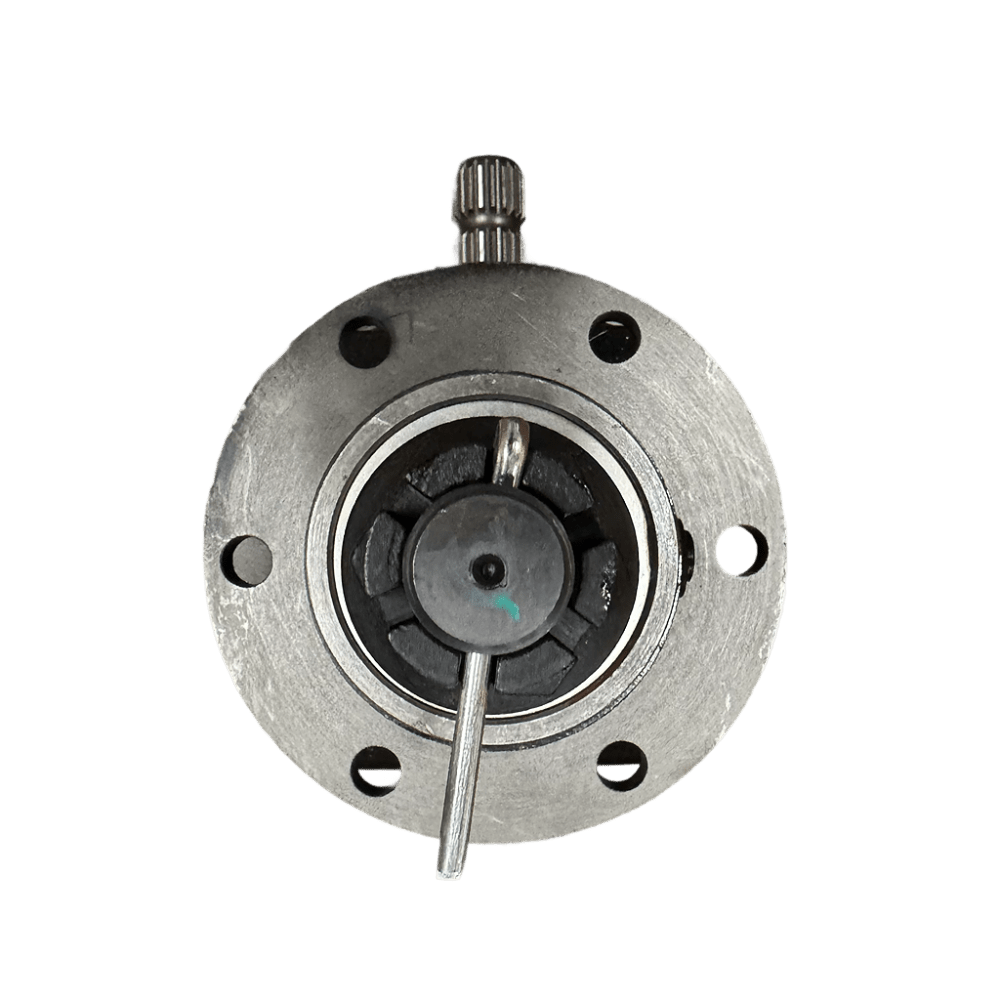

 FM110 GEARBOX / 1:1.46 / 20 splines
*Horsepower: 100
*For Woods brand rotary cutters
*Outside rotation: clockwise or counterclockwise with no modifications
*Housing construction: Ductile iron
*20 splines input shaft: 1-3/4 in.
*Output shaft 2 in. 15 Spline
*Gear type: Bevel gear
*Bolt pattern: (6) 3/4" diameter holes on an 8 in. bolt circle
*Gear ratio: 1:1.46
*Input Shaft center to the base flange is 7.06"
*Output shaft length from the base flange is 8.5"
*Shipped dry, please add 48OZ 80-90W gear lube before using
*Weight: 70lbs

Ship via UPS.
