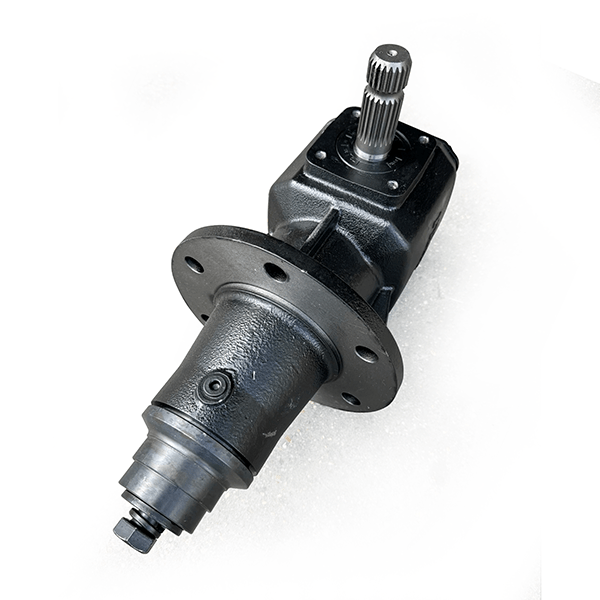

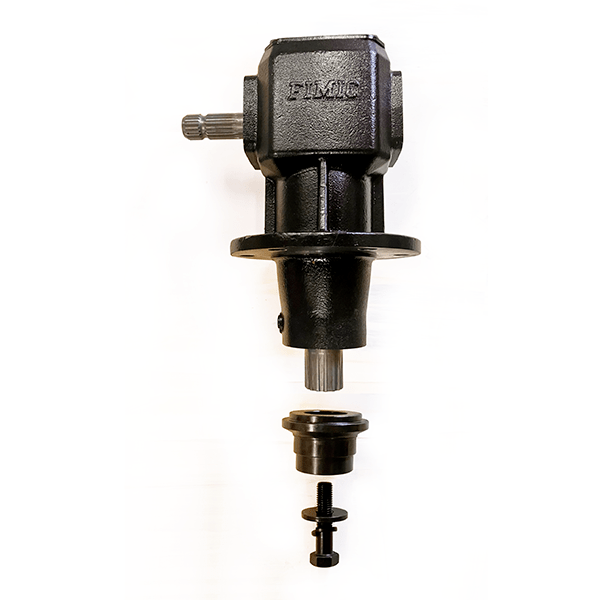

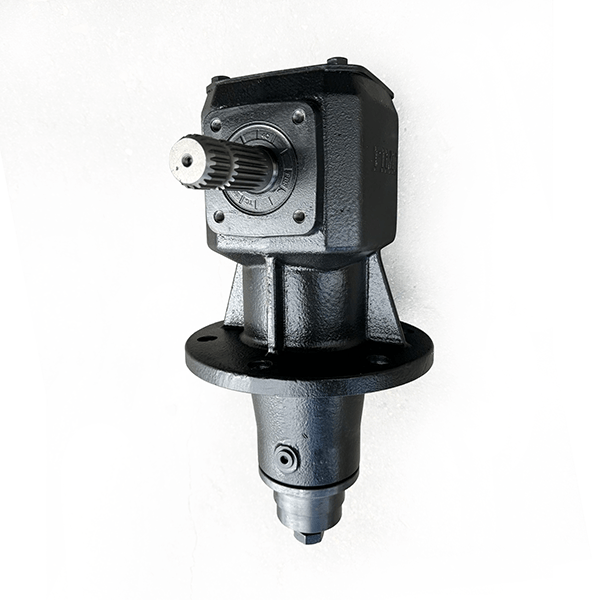

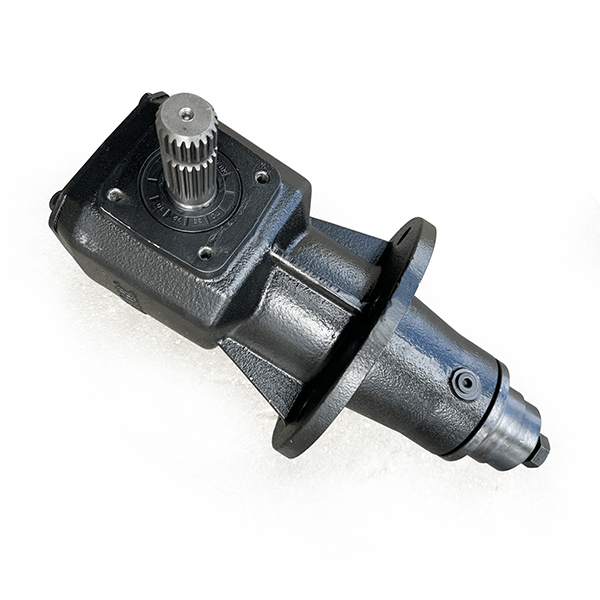

Gearbox Fits Most John Deere Rotary Mower MX5 MX6, MX8 (Spain-made style)

SKU: FM55-146
Regular price $1,199.99

1-Year Warranty

Ship Next Business Day

Canada Delivery Available

Note: Orders dispatch next day. Delivery timelines are subject to UPS.

Shipping Calculator

Orders dispatch next day.

Orders dispatch next day.

Descriptions
Specifications

 FM55-146 GEARBOX / 1:1.46 / 21 splines

Always check your gearbox ratio first

*Horsepower: 75
*For 5 ft, 6 ft, 8ft MX series rotary cutters
*Gear ratio: 22 teeth input/ 15 teeth output
*Outside rotation: clockwise or counterclockwise with no modifications
*Housing construction: Ductile iron
*21 splines input shaft: 1-3/8 in.*Output shaft 2 in. 15 Spline
*Gear type: Bevel gear

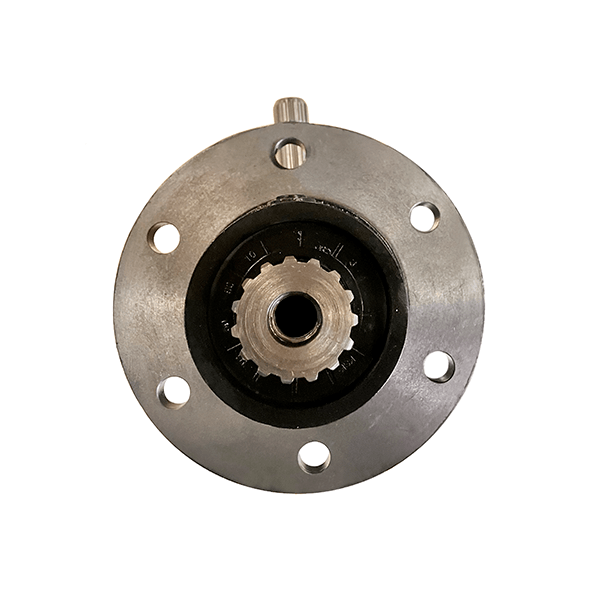

*Bolt pattern: (6) 3/4" diameter holes on an 8 in. bolt circle
*Gear ratio: 1:1.46
*Input Shaft center to the base flange is 7.06"
*Output shaft length from the base flange is 7"
*Shipped dry, please add 60 OZ 80-90W gear lube before using
*Weight: 70lbs

Ship via UPS.

Gear Ratio: 1.46
Input Gear Teeth: 22
Output Gear Teeth: 15
Bolt Pattern: (6) 3/4" diameter holes on an 8 in. bolt circle
