Gearbox Replacement DE19015 Fits Most John Deere Batwing Rotary Mower, (Spain-made style)

Name: Gearbox Replacement DE19015 Fits Most John Deere Batwing Rotary Mower, (Spain-made style)
Brand: fimicimplement
SKU: FM95-135
Price: 1699.99 USD
Availability: OutOfStock

SKU: FM95-135

Product variants

$1,699.99

1-Year Warranty

Ship Next Business Day

Canada Delivery Available

Note: Orders dispatch next day. Delivery timelines are subject to UPS.

1-601-342-5178

Shipping Calculator

Orders dispatch next day.

Country

Province

Postal/ZIP Code

Orders dispatch next day.

Descriptions

Specifications

FM95-135 GEARBOX / 1:1.35 / 20 splines

Always check your gearbox ratio first

*Horsepower: 100
*Gear ratio: 23 teeth input/ 17 teeth output
*Outside rotation: clockwise or counterclockwise with no modifications
*Housing construction: Ductile iron
*20 splines input shaft: 1-3/4 in.
*Output shaft 2.15 in. 12 Spline
*Gear type: Bevel gear
*Bolt pattern: (6) 3/4" diameter holes on an 8 in. bolt circle
*Gear ratio: 1:1.35
*Input Shaft center to the base flange is 7.06"
*Output shaft length from the base flange is 7"
*Shipped dry, please add 60 OZ 80-90W gear lube before using
*Weight: 85lbs

Ship via UPS.

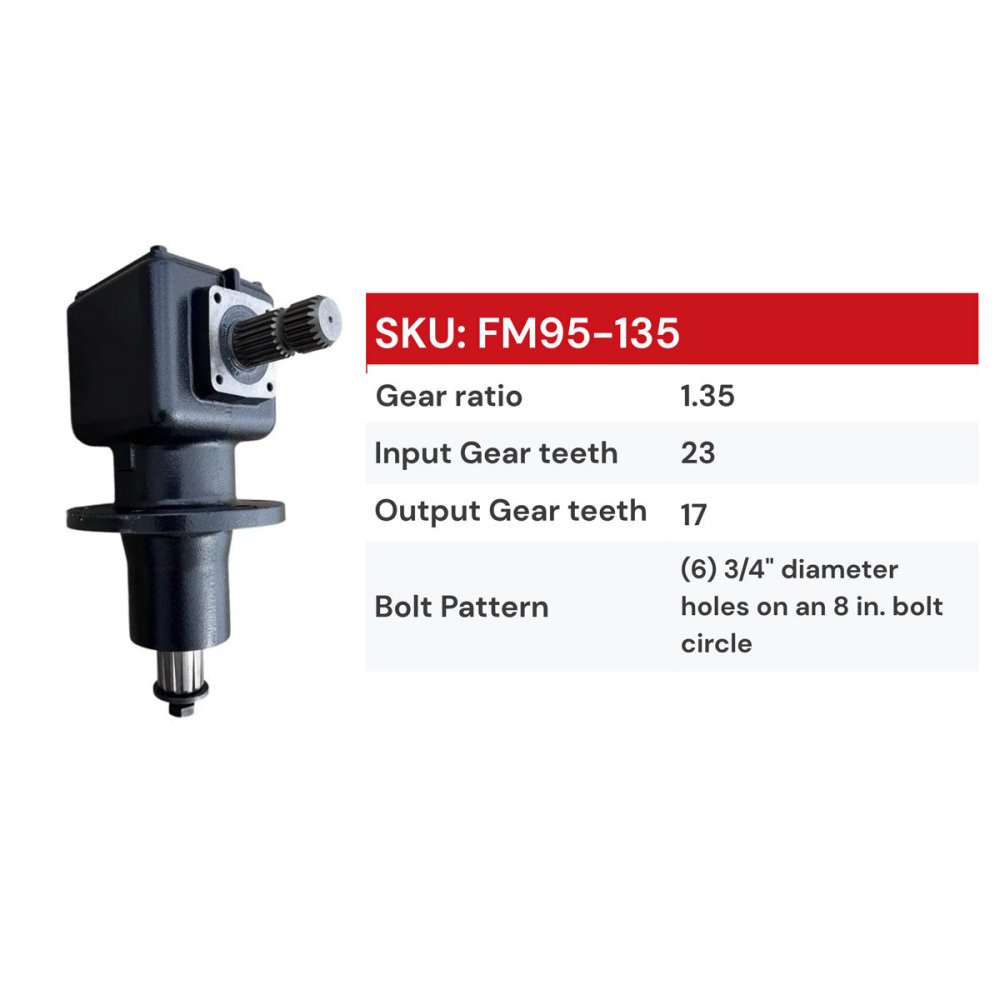

Gear Ratio: 1.35
Input Gear Teeth: 23
Output Gear Teeth: 17
Bolt Pattern: (6) 3/4" diameter holes on an 8 in. bolt circle
Compatible: 509, 609, 709, CX15, CX20, HX10, HX15, HX20
