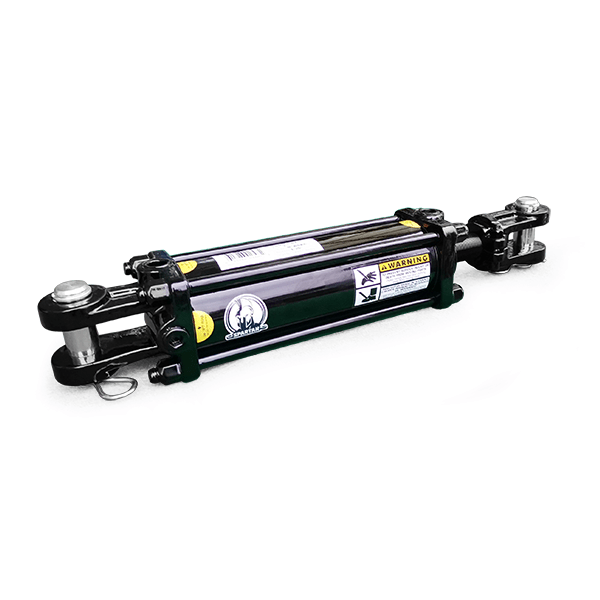

Spartan® 3000 PSI Tie-Rod Cylinder 3" Bore x 8" Stroke x 1.25" Rod Diameter x ASAE

$105.99 USD
SP013-3008A

Spartan® 3000 PSI hydraulic cylinders are constructed of high strength steel, durable chrome plated rods, endurance tested seal packages to 50,000 cycles, and are 100% performance tested to assure leak free use in any industry.  All Spartan cylinders are able to be used in double and single acting applications.  This cylinder features a 3" bore diameter, 8” stroke length, 1.25” hard chrome rod, 1" clevis pins, and is painted black.
Spartan® 3000 PSI Tie-Rod Cylinder Specifications
Bore Diameter 3"
Stroke Length
8" ASAE
Rod Diameter
1.25"
Retracted Length
20-1/4"
Extended Length
28-1/4"
Pin Diameter
1"
Port Size
SAE 8 (3/4-16" UNF)
Working Pressure (maximum) 3000 PSI
Operating Temperature Range (maximums)
-30 to 110 °C (-22 to 230 °F)
Weight 26.55 lbs.
Column Load 21195 lbs.

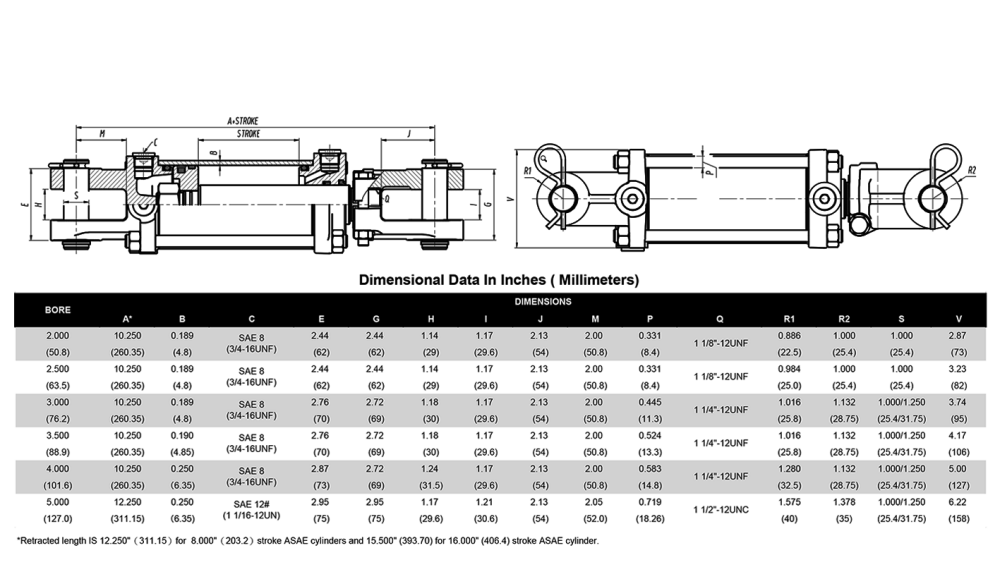

E 2.76"
G 2.72"
H 1.18"
I 1.17"
V 3.74"
