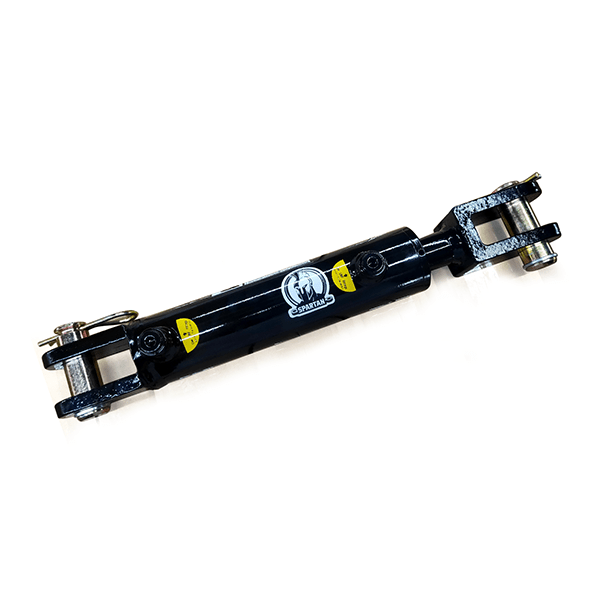

Spartan® 3000 PSI Welded Clevis Cylinder 2.5" Bore x 10" Stroke x 1.5" Rod Diameter
Spartan® 3000 PSI hydraulic cylinders are constructed of high strength steel, durable chrome-plated rods, endurance tested seal packages to 50,000 cycles, and are 100% performance tested to assure leak-free use in any industry. All Spartan cylinders are able to be used in double and single acting applications. This cylinder features a 2.5" bore diameter, 10” stroke length, 1.5” hard chrome rod, 1" clevis pins, and is painted black.
Spartan® 3000 PSI Welded Clevis Cylinder Specifications | ||
Bore Diameter | 2.5" | |
Stroke Length | 10" | |
Rod Diameter | 1.5" | |
Retracted Length | 20-1/4" | |
Extended Length | 30-1/4" | |
Pin Diameter | 1" | |
Port Size | SAE8 | |
Working Pressure (maximum) | 3000 PSI | |
Operating Temperature Range (maximums) | -20 to 100 °C (-4 to 212 °F) | |
Weight | 22.24 lbs. | |
Column Load | 9420 lbs. | |

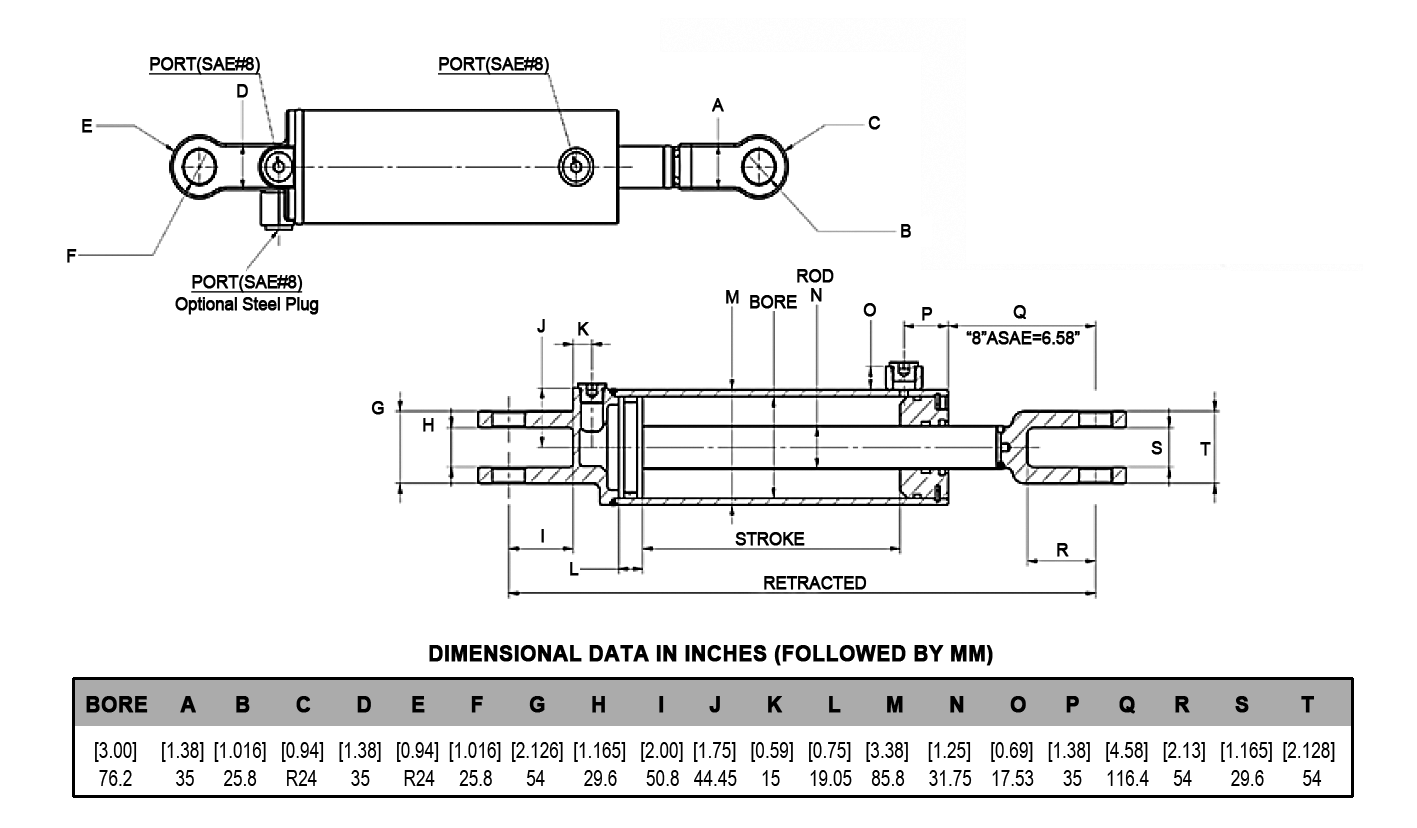

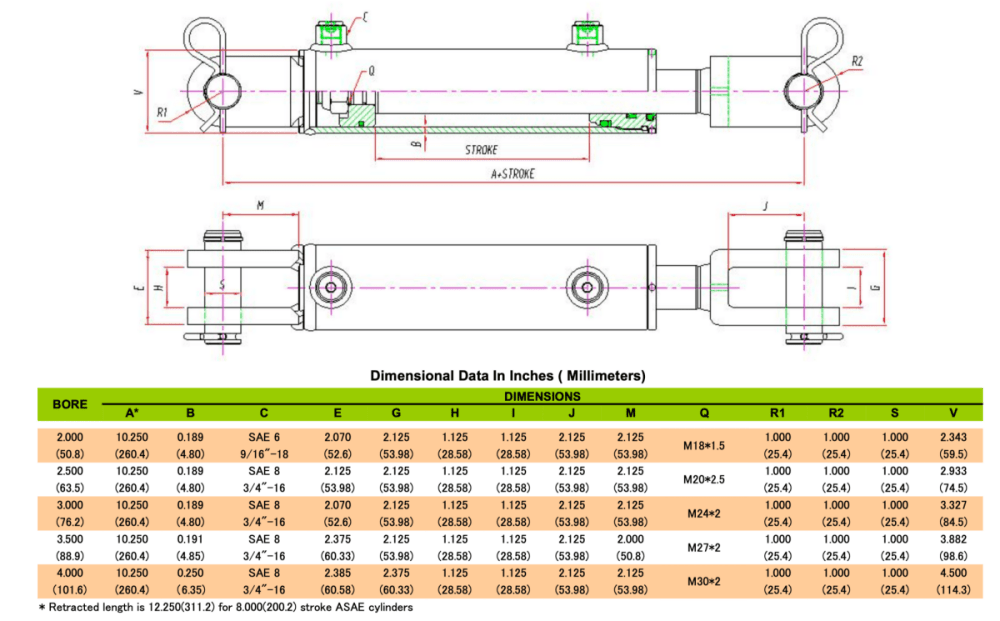

E | 2.125" | |
G | 2.125" | |
H | 1.125" | |
I | 1.125" | |
