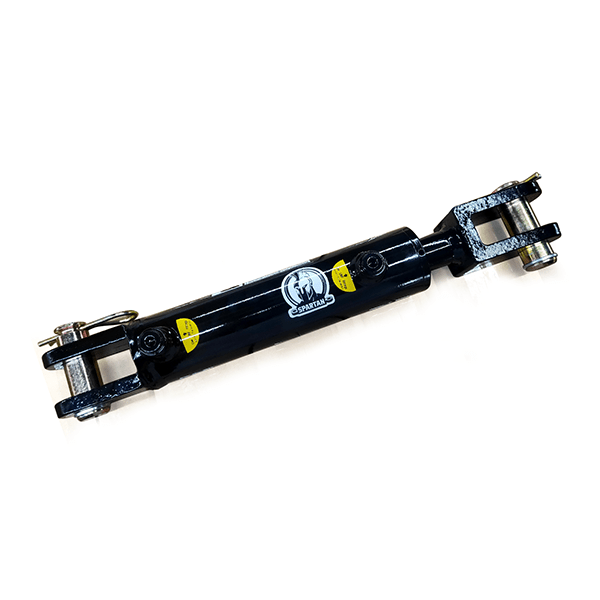

Spartan® 3000 PSI Welded Clevis Cylinder 2.5" Bore x 24" Stroke x 1.5" Rod Diameter

SKU: SP014-2524
No reviews
$209.99

1-Year Warranty

Ship Next Business Day

Canada Delivery Available
Contact Us Via Phone
Contact Us Via Email

Shipping Calculator

Notes: * Please add items to your shopping cart before clicking the Calculate Shipping button.

Notes: * Please add items to your shopping cart before clicking the Calculate Shipping button.
Descriptions
Specifications

Spartan® 3000 PSI hydraulic cylinders are constructed of high strength steel, durable chrome plated rods, endurance tested seal packages to 50,000 cycles, and are 100% performance tested to assure leak free use in any industry.  All Spartan cylinders are able to be used in double and single acting applications.

  • Bore Diameter: 2"
  • Stroke Length :24"
  • Rod Diameter: 1.5"
  • Retracted Length: 34-1/4"
  • Extended Length: 58-1/4"
  • Pin Diameter: 1"
  • Port Size: SAE6
  • Working Pressure (maximum): 3000 PSI
  • Operating Temperature Range (maximums): -20 to 100 °C (-4 to 212 °F)
  • Weight: 36.26 lbs.
  • Column Load: 9420 lbs.

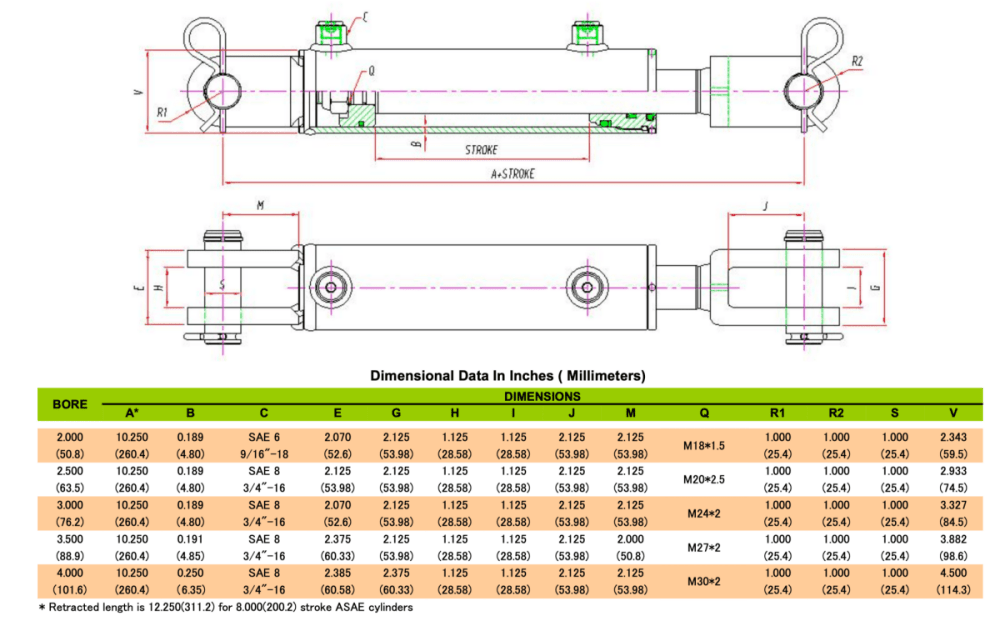

  • E: 2.125"
  • G: 2.125"
  • H: 1.125"
  • I: 1.125"
