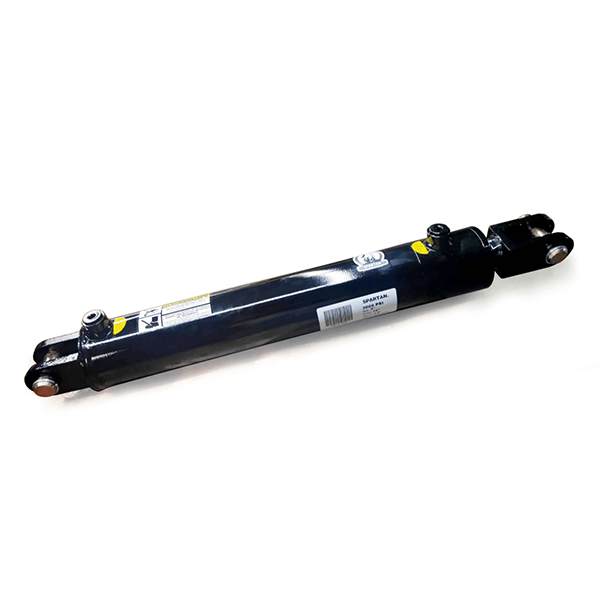

Spartan® 3000 PSI Welded Clevis Cylinder 3.5" Bore x 6" Stroke x 1.75" Rod Diameter

SKU: SP014-3506
No reviews
$229.99

1-Year Warranty

Ship Next Business Day

Canada Delivery Available
Contact Us Via Phone
Contact Us Via Email

Shipping Calculator

Notes: * Please add items to your shopping cart before clicking the Calculate Shipping button.

Notes: * Please add items to your shopping cart before clicking the Calculate Shipping button.
Descriptions
Specifications

Spartan® 3000 PSI hydraulic cylinders are constructed of high strength steel, durable chrome plated rods, endurance tested seal packages to 50,000 cycles, and are 100% performance tested to assure leak free use in any industry.  All Spartan cylinders are able to be used in double and single acting applications.

  • Bore Diameter: 3.5"
  • Stroke Length: 6"
  • Rod Diameter: 1.75"
  • Retracted Length: 16.25"
  • Extended Length: 22.25"
  • Pin Diameter: 1"
  • Port Size: SAE8 NPT
  • Weight: 12.9 lbs.
  • Working Pressure (maximum): 3000 PSI
  • Operating Temperature Range (maximums): -30 to 110 °C (-22
    to 230 °F)
  • Column Load: 9420 lbs.

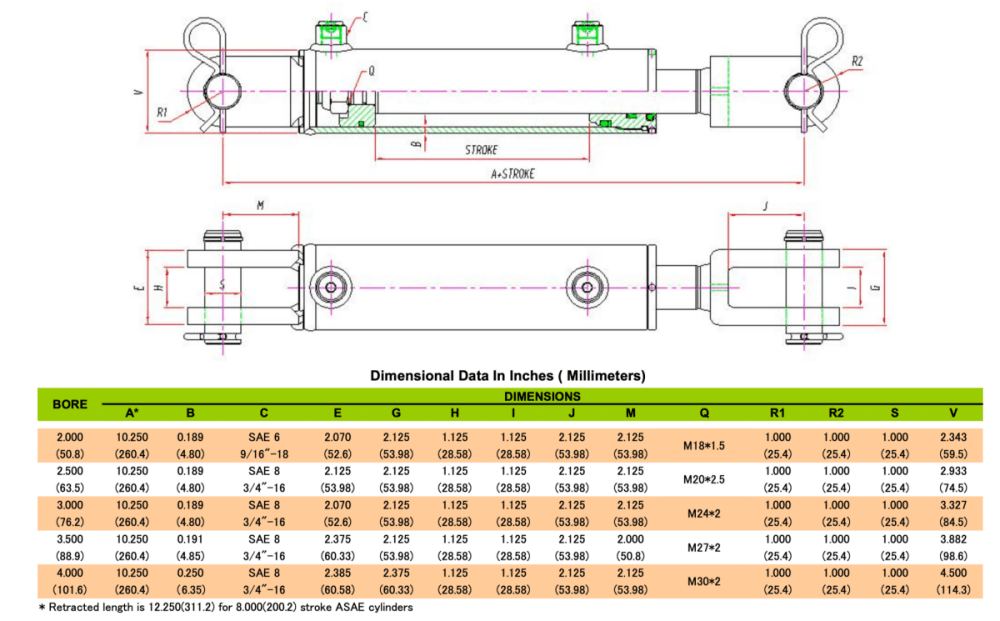

  • E: 2.125"
  • G: 2.125"
  • H: 1.125"
  • I: 1.125"
