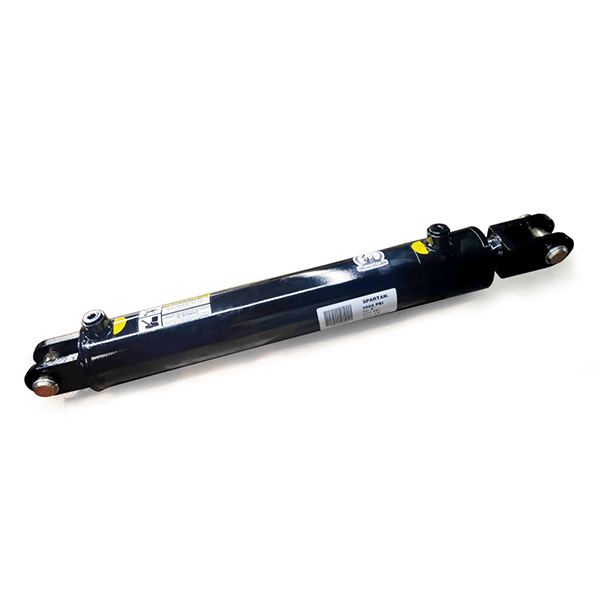

Spartan® 3000 PSI Welded Clevis Cylinder 3" Bore x 24" Stroke x 1.5" Rod Diameter

SKU: SP014-3024
No reviews
$239.99

1-Year Warranty

Ship Next Business Day

Canada Delivery Available
Contact Us Via Phone
Contact Us Via Email

Shipping Calculator

Notes: * Please add items to your shopping cart before clicking the Calculate Shipping button.

Notes: * Please add items to your shopping cart before clicking the Calculate Shipping button.
Descriptions
Specifications

Spartan® 3000 PSI hydraulic cylinders are constructed of high strength steel, durable chrome plated rods, endurance tested seal packages to 50,000 cycles, and are 100% performance tested to assure leak free use in any industry.  All Spartan cylinders are able to be used in double and single acting applications.

Bore Diameter: 3"

Stroke Length: 24"

Rod Diameter: 1.5"

Retracted Length: 34.25"

Extended Length: 58.25"

Pin Diameter: 1"

Port Size: SAE8 NPT

Weight: 17.91 lbs.

Working Pressure (maximum): 3000 PSI

Operating Temperature Range (maximums): -30 to 110 °C (-22
to 230 °F)

Column Load: 9420 lbs.

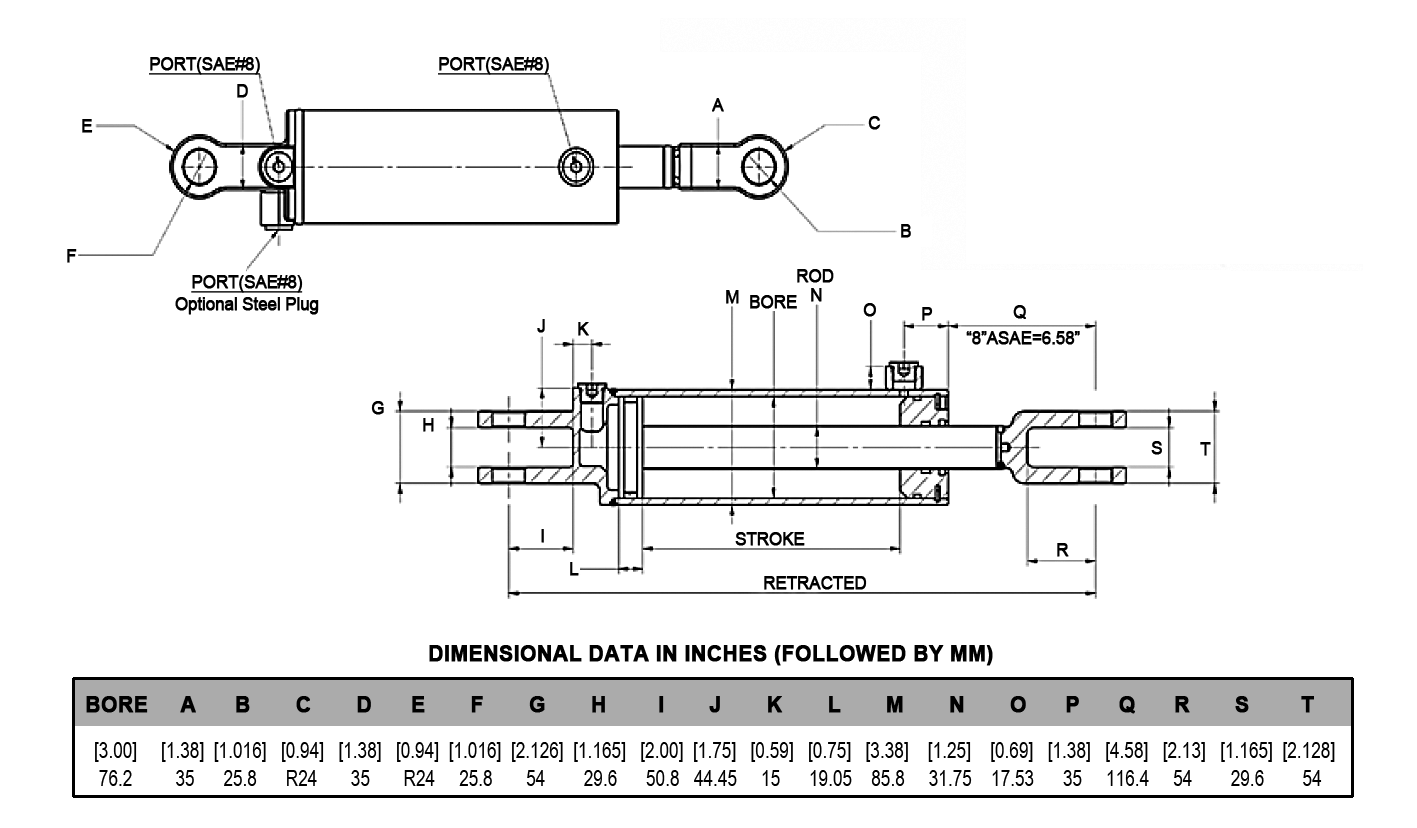

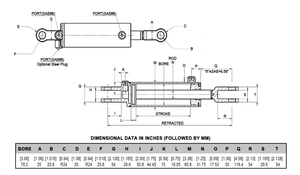

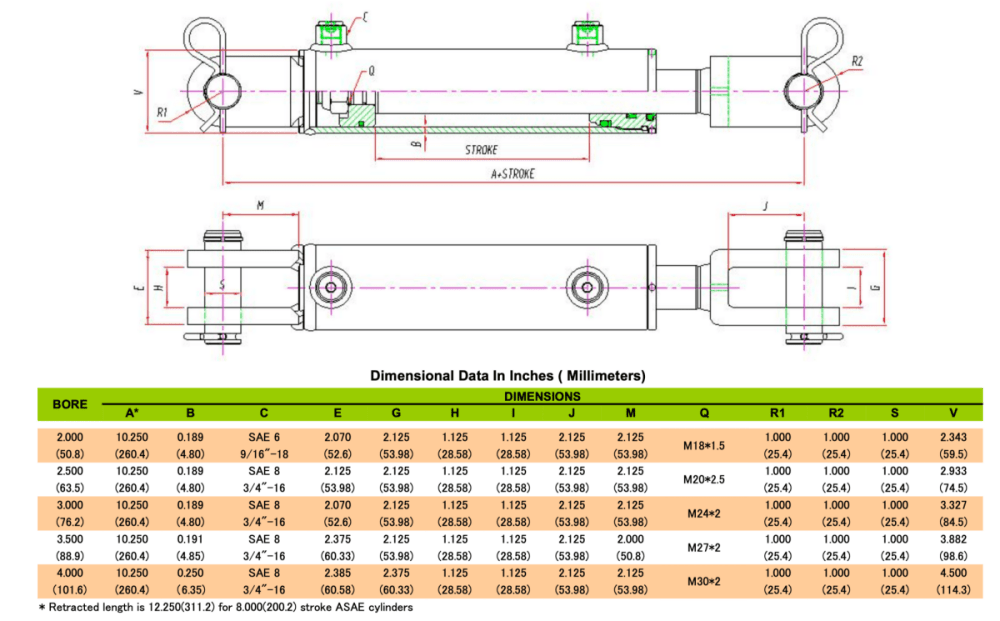

E: 2.125"

G: 2.125"

H: 1.125"

I: 1.125"
