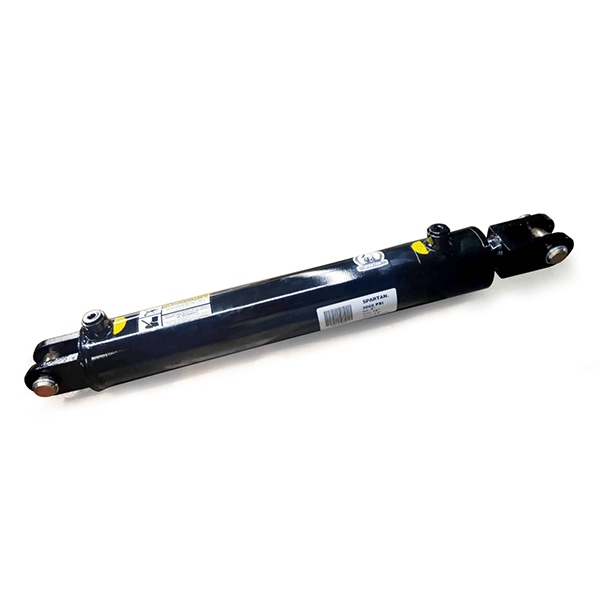

Spartan® 3000 PSI Welded Clevis Cylinder 3" Bore x 4" Stroke x 1.5" Rod Diameter

$119.99 USD
SP014-3004
 More payment options

Spartan® 3000 PSI hydraulic cylinders are constructed of high strength steel, durable chrome-plated rods, endurance tested seal packages to 50,000 cycles, and are 100% performance tested to assure leak-free use in any industry.  All Spartan cylinders are able to be used in double and single acting applications.  This cylinder features a 3" bore diameter, 4” stroke length, 1.5” hard chrome rod, 1" clevis pins, and is painted black.
Spartan® 3000 PSI Welded Clevis Cylinder Specifications
Bore Diameter 3"
Stroke Length
4"
Rod Diameter
1.5"
Retracted Length
14-1/4"
Extended Length
18-1/4"
Pin Diameter
1"
Port Size
SAE8
Working Pressure (maximum) 3000 PSI
Operating Temperature Range (maximums)
-20 to 100 °C (-4 to 212 °F)
Weight 23.67 lbs.
Column Load 21200 lbs.

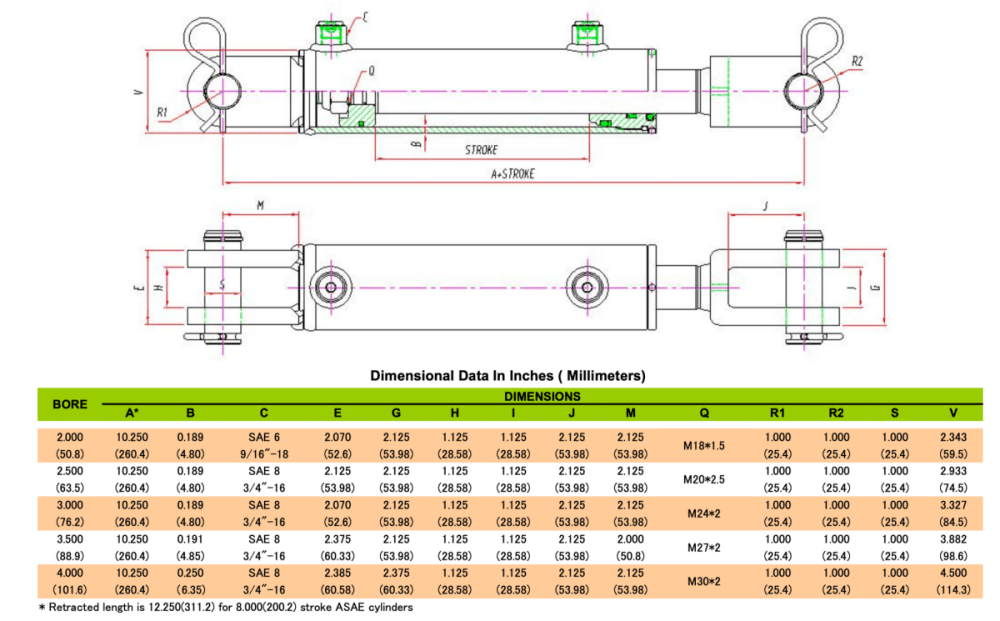

E 2.125"
G 2.125"
H 1.125"
I 1.125"
