Woods Rotary Cutter Replacement GEARBOX, #617154RP, 1.27 Ratio, 6 SPLINE

SKU: 50W50127-6s
$499.99

1-Year Warranty

Ship Next Business Day

Canada Delivery Available

Note: Orders dispatch next day. Delivery timelines are subject to UPS.

Canada applies tariffs on goods imported from the US, and these must be paid before the items can be released for delivery.

Contact Us Via Phone
Contact Us Via Email

Shipping Calculator

Notes: * Please add items to your shopping cart before clicking the Calculate Shipping button.

Notes: * Please add items to your shopping cart before clicking the Calculate Shipping button.
Descriptions
Specifications

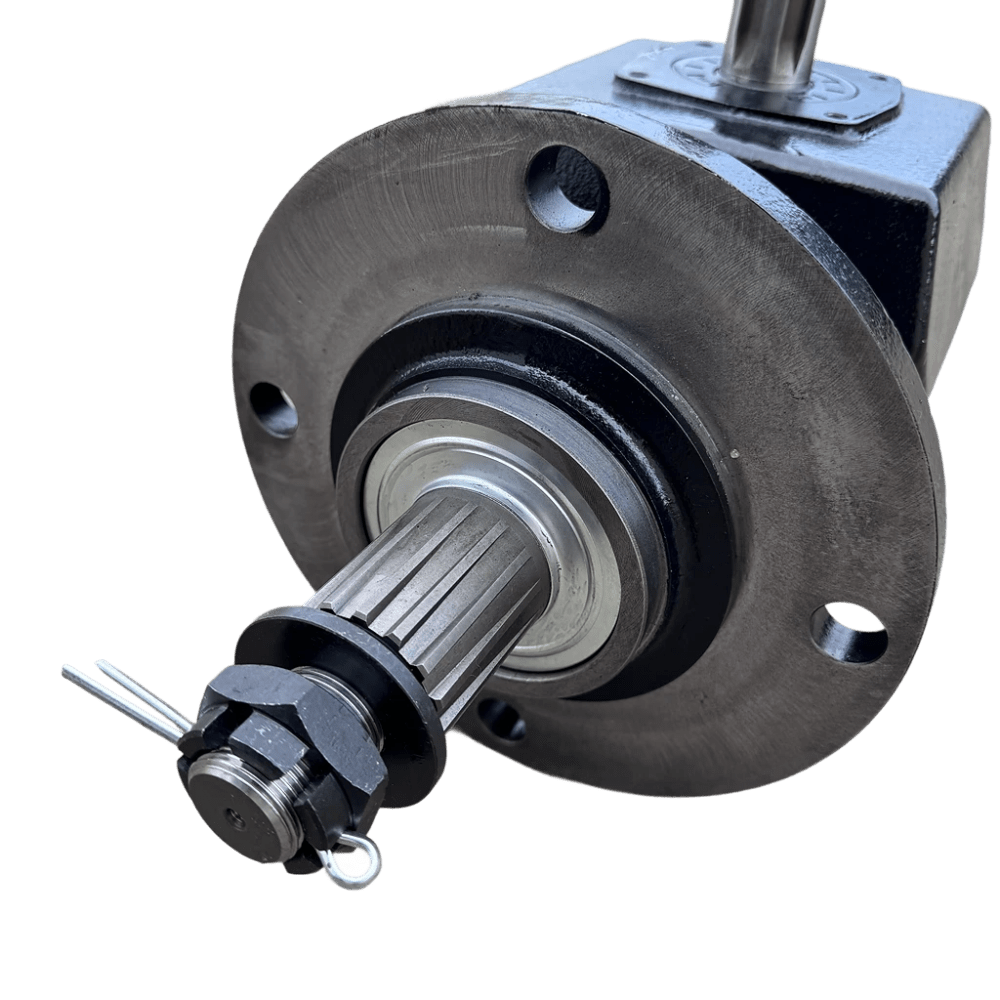

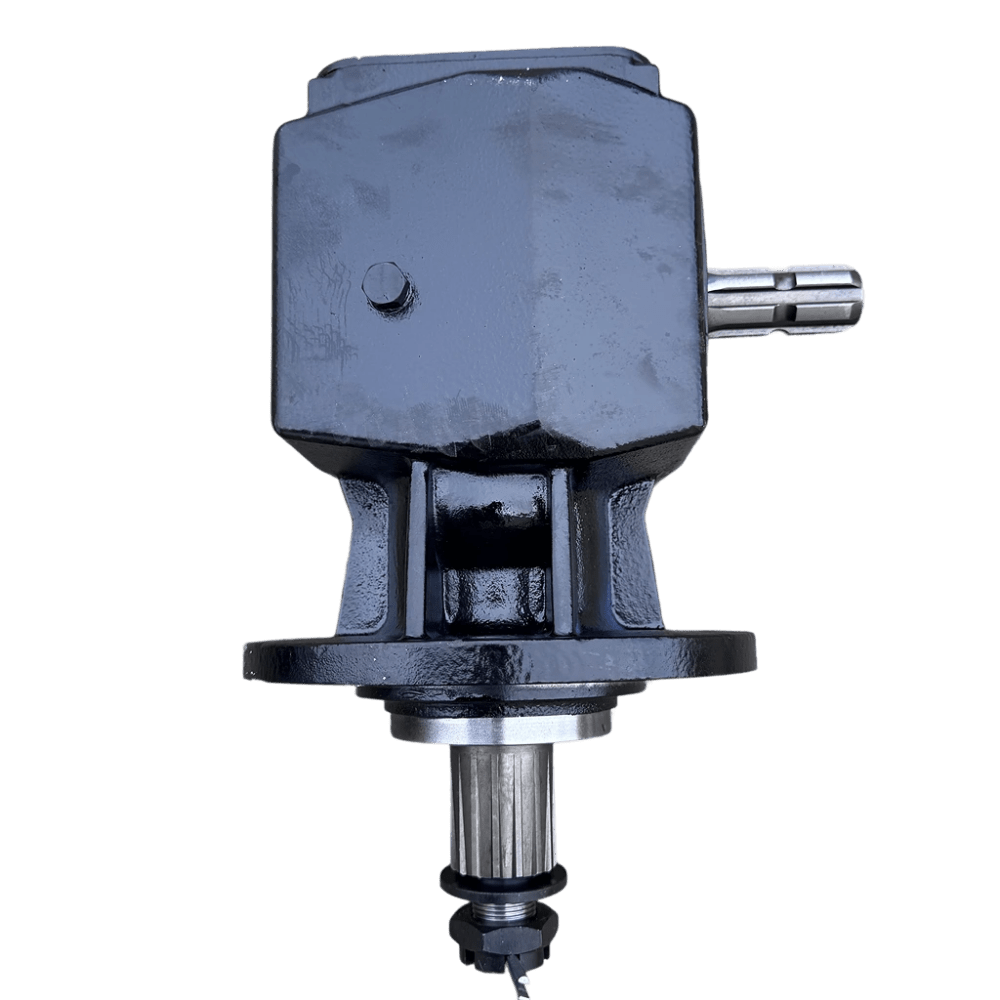

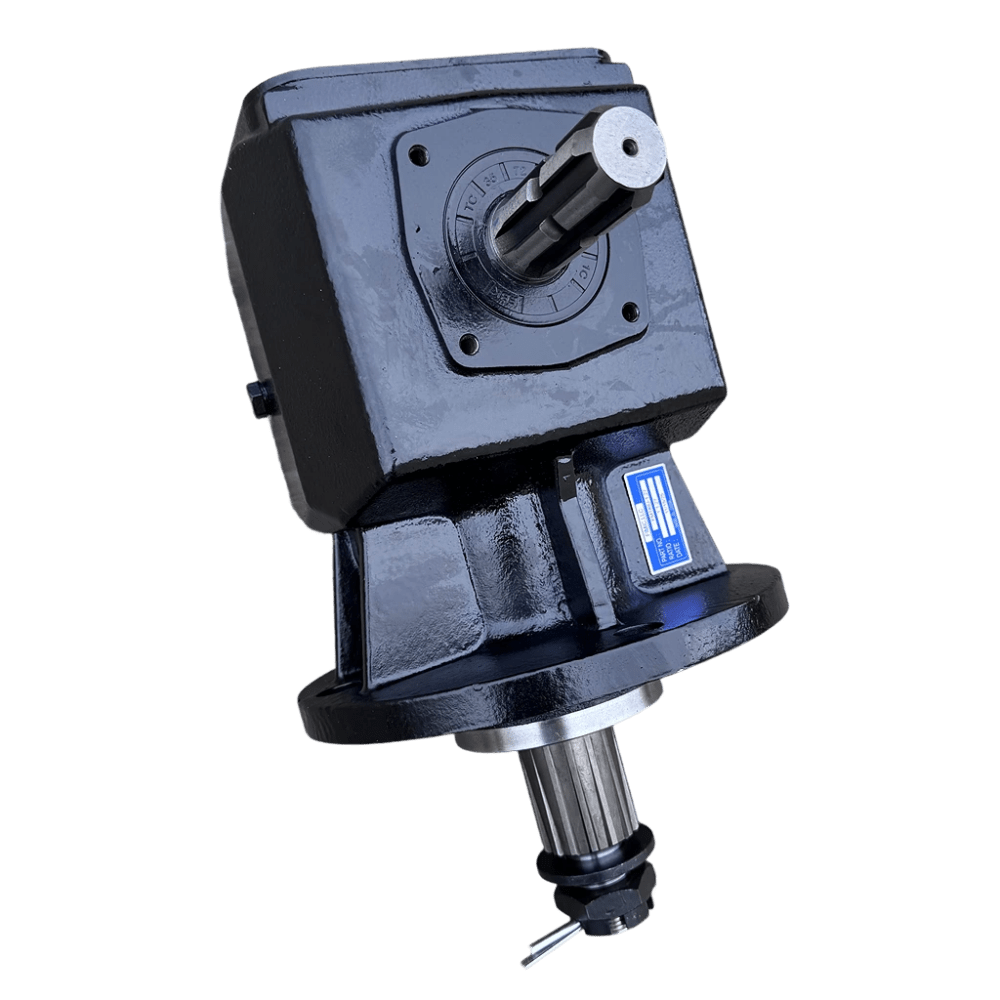

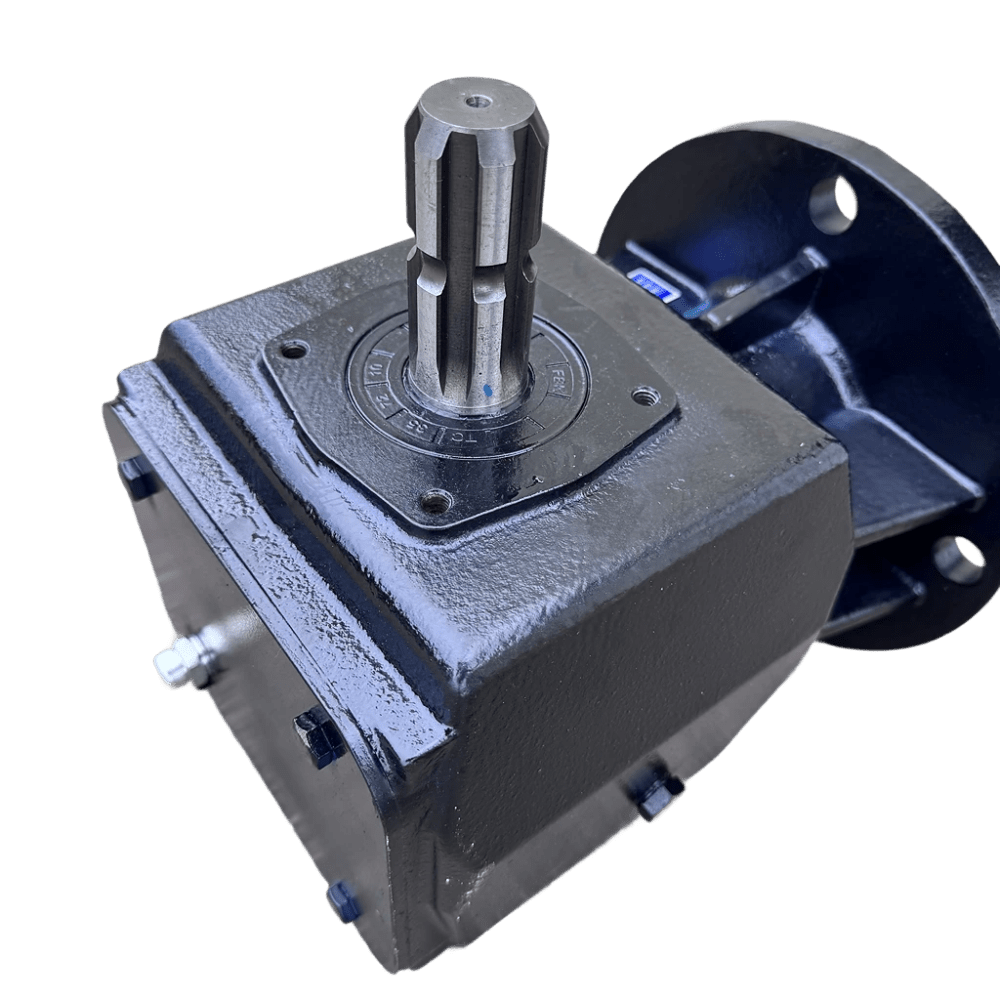

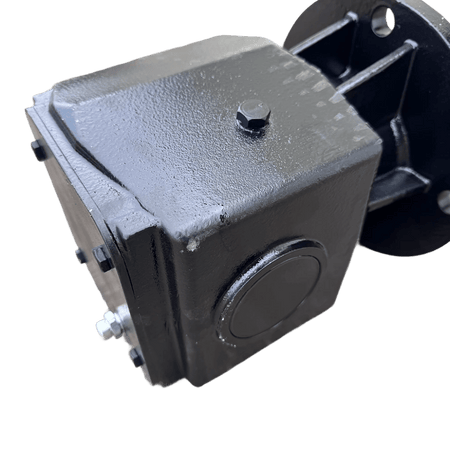

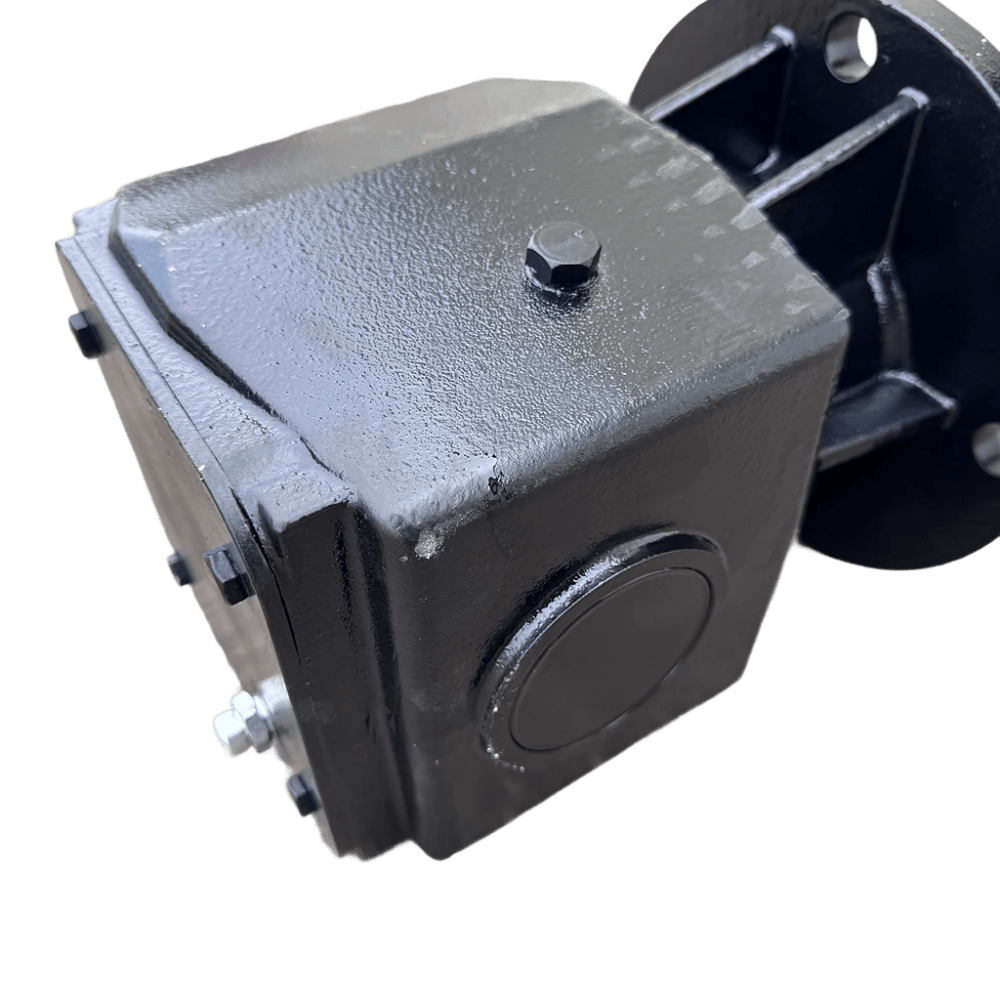

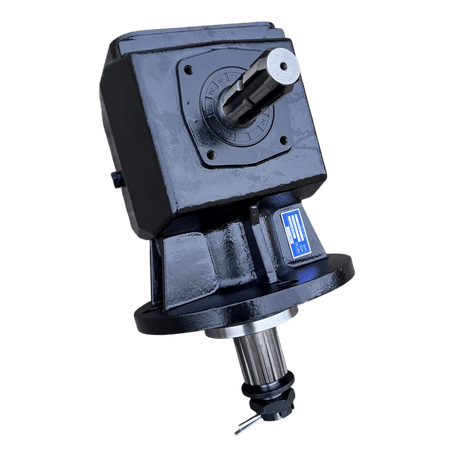

This replacement rotary cutter gearbox is designed for select Woods rotary cutters and spindle gearbox assemblies. Part number 617154RP, it features counterclockwise (CCW) rotation, a 1:1.27 gear ratio, and is commonly used on multiple Woods BB and DS series cutters.

Compatible Models

This gearbox is shown for use on select Woods models including:

  • BB48
  • BB48E
  • BB60
  • BB60E
  • BB72
  • BB72E
  • BB84
  • BB84E
  • BB84X
  • BB84.40
  • DS8.30
  • DS10.40
  • DS10.40E
  • DS120
  • YRC840B

75hp GEARBOX / 1:1.26 / 6 SPLINE

*Horsepower: 75
*For woods 5 ft., 6 ft.,7ft., 8ft and 10ft rotary cutters
*Outside rotation: CounterCW input gives CW output
*Comes with the castellated nut
*Housing construction: Ductile iron
*6 spline input shaft: 1-3/8 in.*Gear ratio: 1:1.27
*Gear type: Bevel gear
*Bolt pattern: (4) 0.8" diameter holes on a 8 in. bolt circle
*Input Shaft centre to the base flange is 7"
*Output shaft 2 in. 15 Spline
*Shipped dry, please add 16OZ 80-90W gear lube before using
*Weight: 62.00lbs

Ship via UPS.
