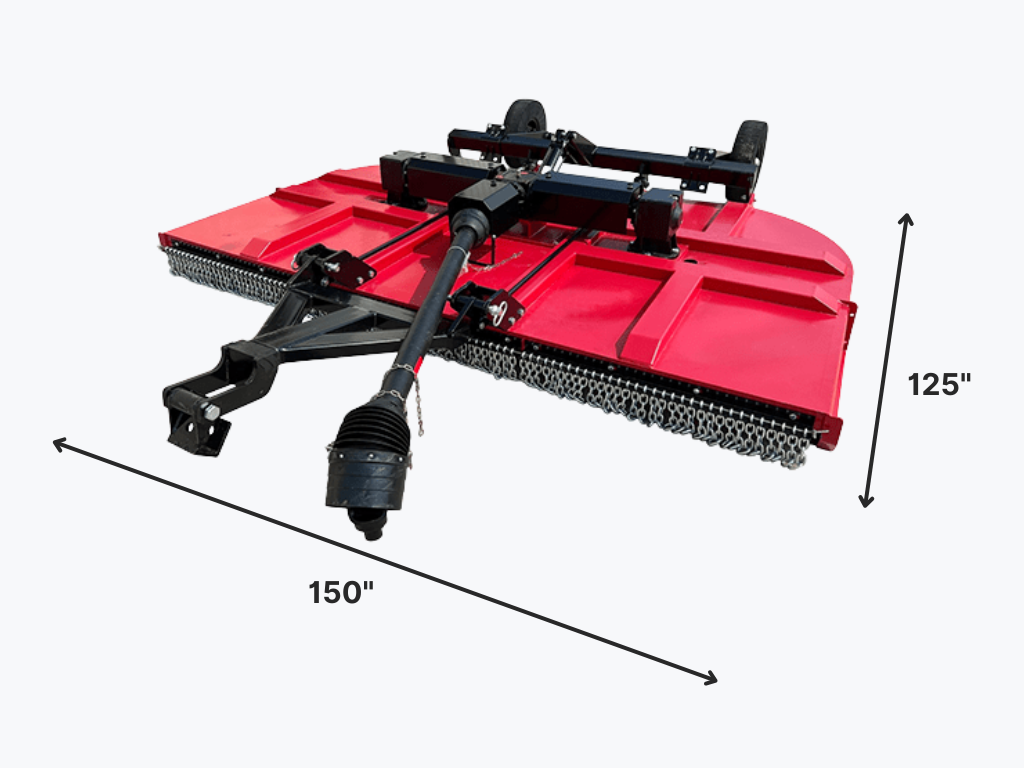

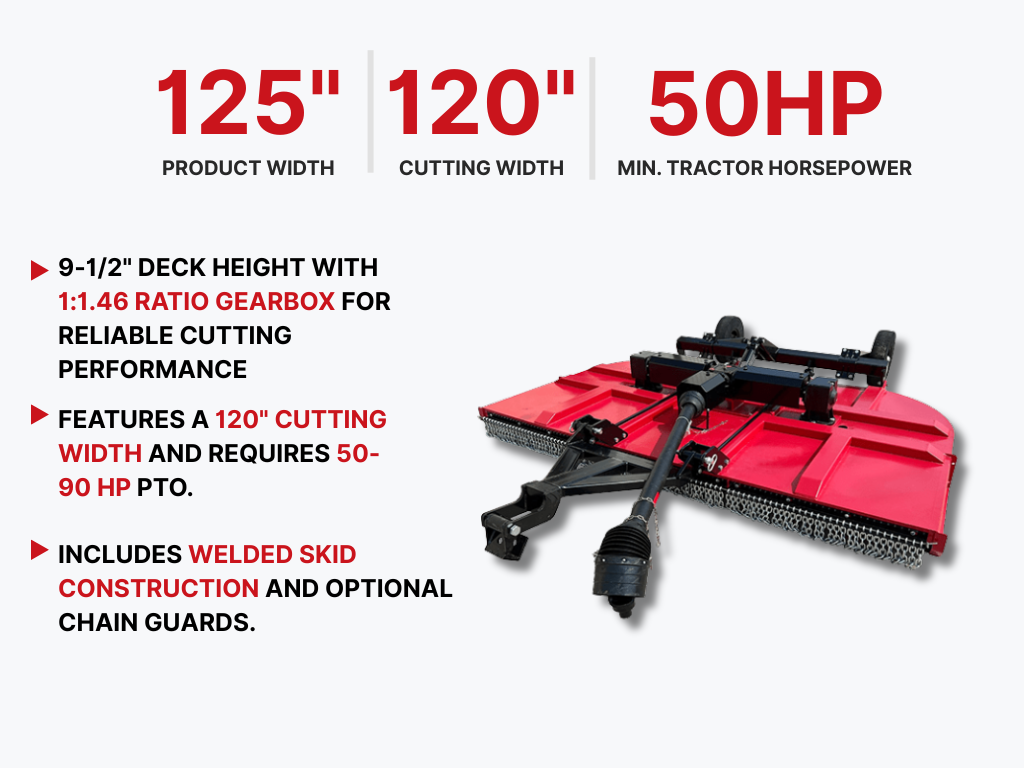

Wolverine Multi-Spindle Rotary Cutter 10′ (Pull Model, FMCRC-P10)
When you require to be a weekend farmer or professional commercial rotary cutter for the maintenance of green areas or the management of vegetation you should look no further than Wolverine. With the most extensive range of rotary cutter in its market sector and a heritage and reputation built on providing professional solutions; Wolverine really is the first choice for all of your Rotary mowing needs. Encompassing a selection of working widths between 5ft and 10ft across eight models there is sure to be a machine to suit your requirements. Acclaimed as brand-new name and a specialist provider of rotary mowing equipment, Wolverine is the professional choice for Agricultural, Horticultural, Municipal applications.
NOTE: Know your tractor’s capabilities before using this equipment. Never exceed the manufacturer’s recommended equipment handling capabilities when using 3-Point Equipment.
| FIMIC Rotary Cutter Specifications & Capacities | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9-1/2" | |
|
|
1-1/2" ~ 11-1/2" | |
|
|
|
|
|
|
|
|
| PTO Speed |
|
|
|
|
|
|
| Gearbox (75PRC500100) | 1:1 (20 spline input) | |
| Gearbox Oil Lubricant | 8 Pints of EP 80-90W Oil | |
| Deck Material Thickness | (.134") | |
| Side Skirt Material Thickness | (.234") | |
|
|
|
|
| Skid Construction |
|
|
| Stump Jumper |
|
|
| Blade x(2) |
|
|
| Blade x(2) | Left-Blade with 3" Offset 1/2" x 3-1/2" x 22-1/2" | |
| Blade Bolts | Square shoulder with flange Nuts | |
| Blade Tip Speed | 14,433 FPM | |
| Driveline | #6 Series CV end Slip Clutch Connecting | |
| Tailwheel | 6" x 9" x 21" Laminated Tire with 5bolits bearing Hub | |
| Front/ Rear Guard (Optional) | Optional: Chain Guard | |
| Weight/lbs | 1654 | |
