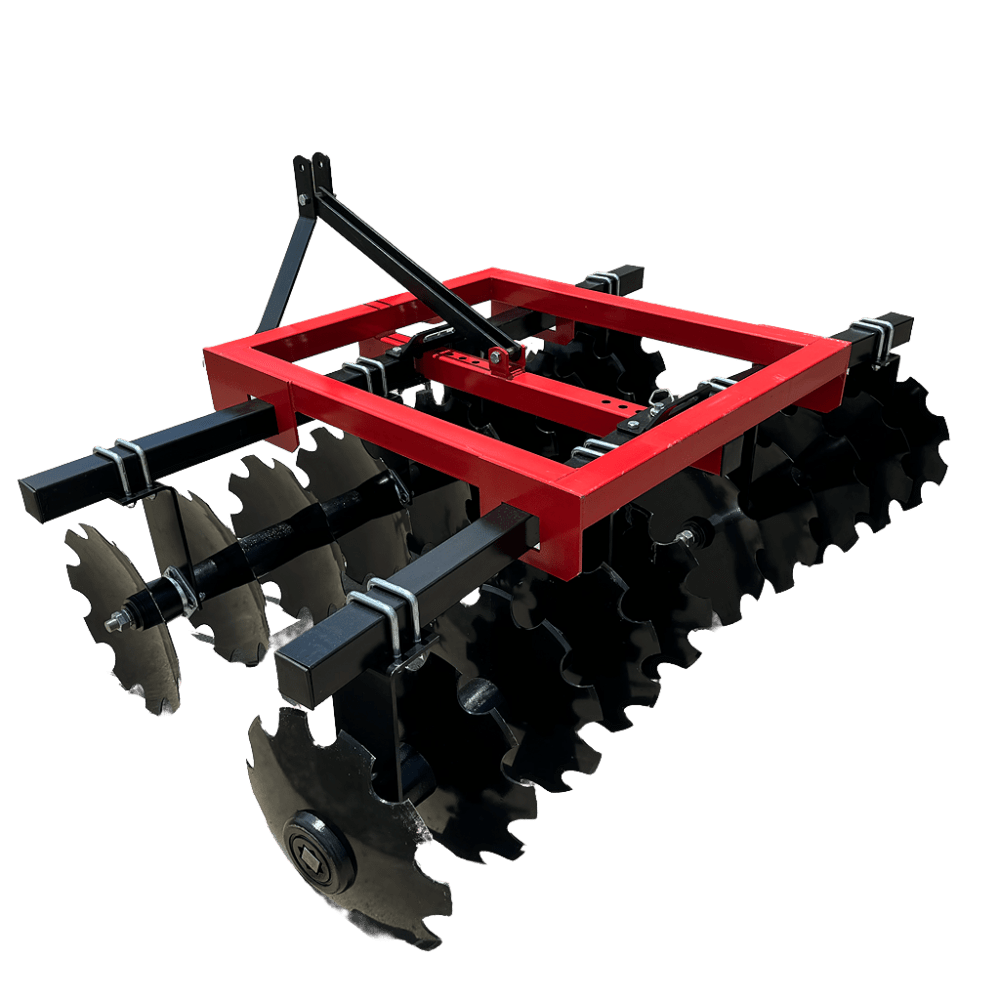

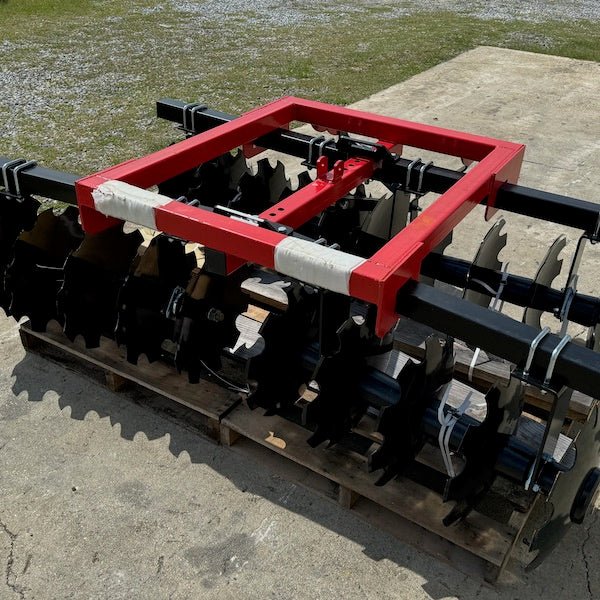

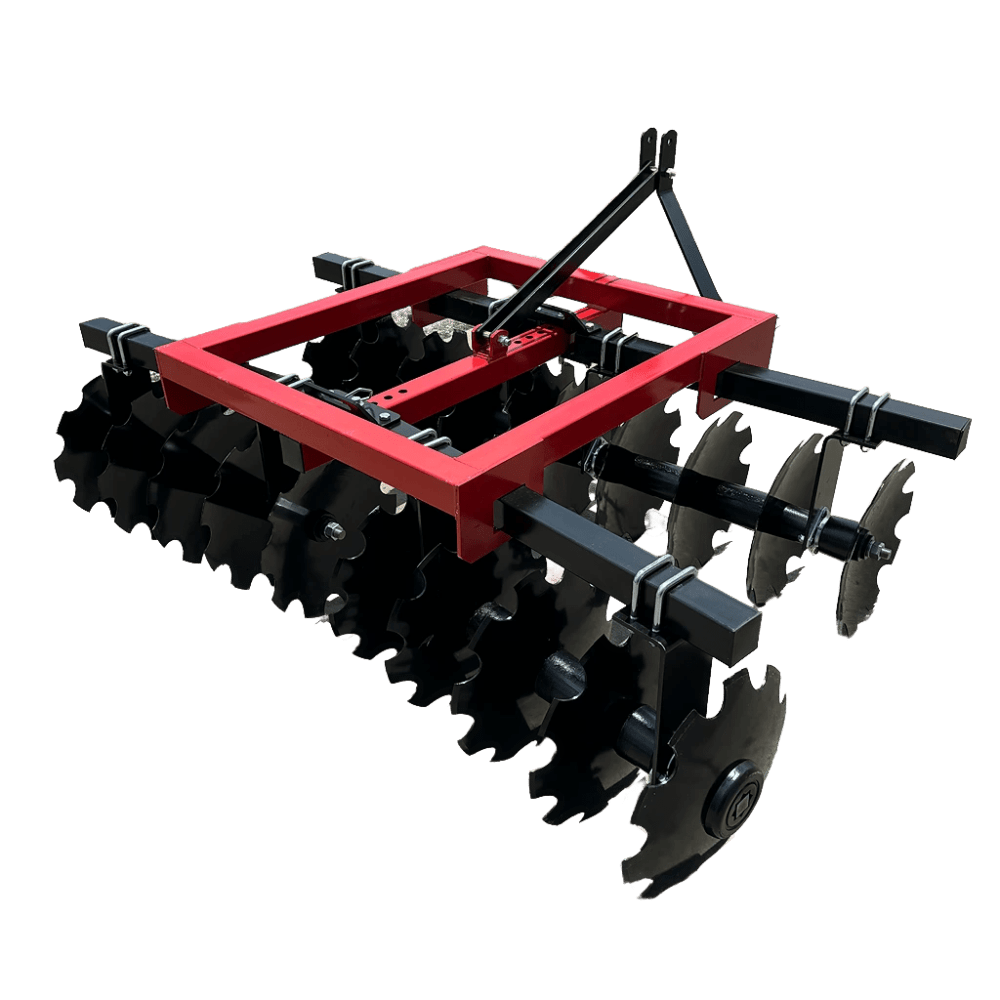

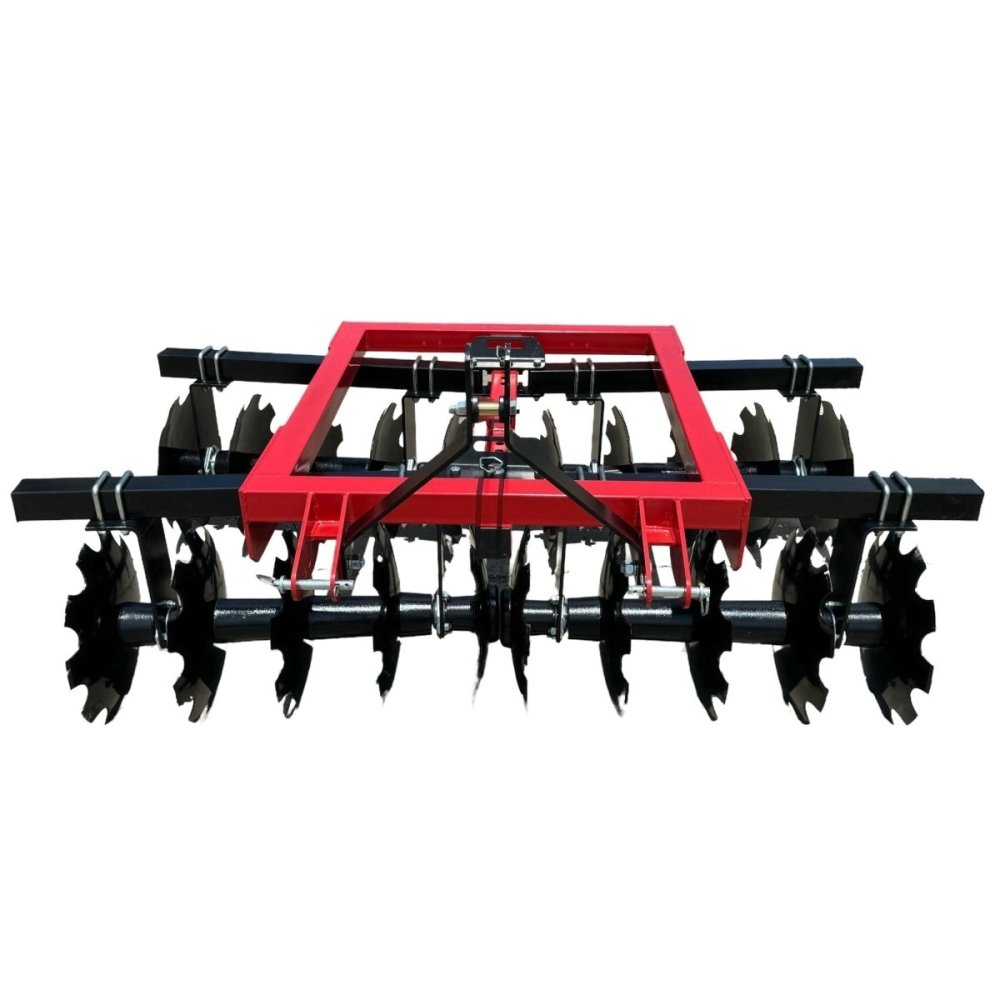

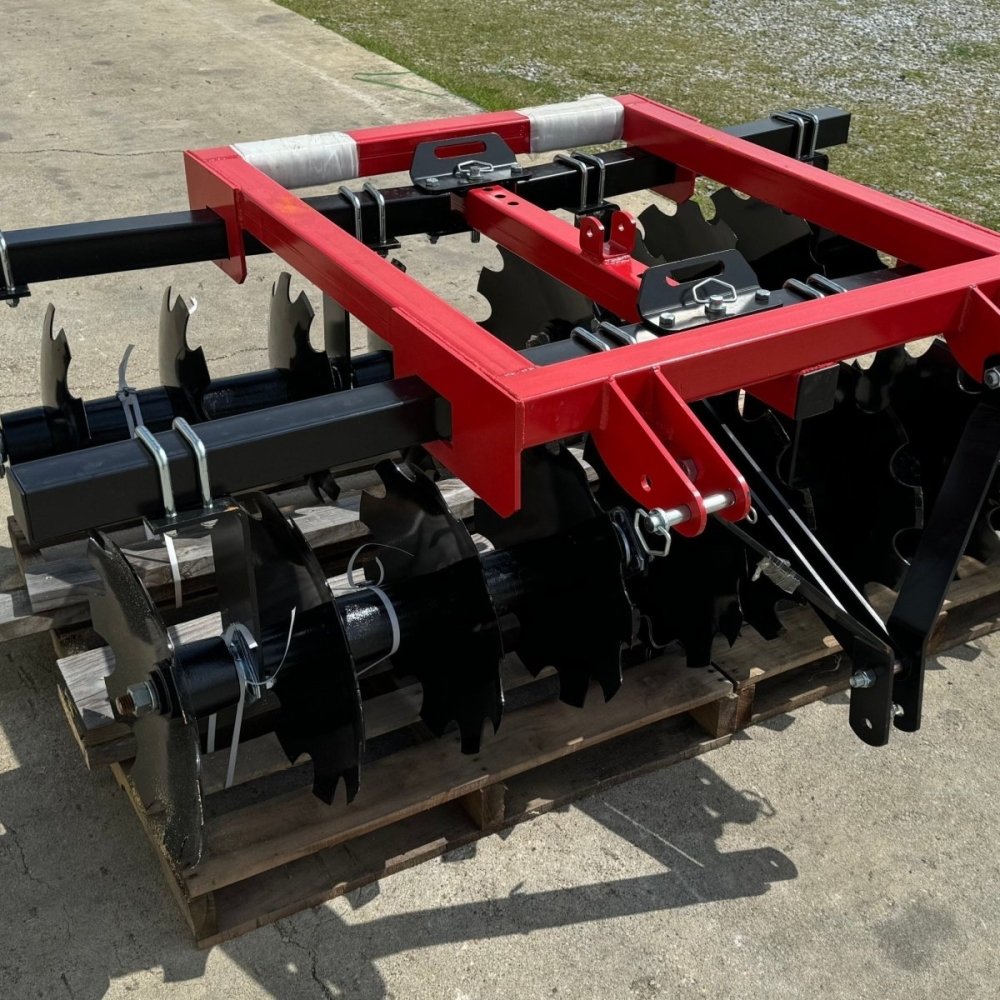

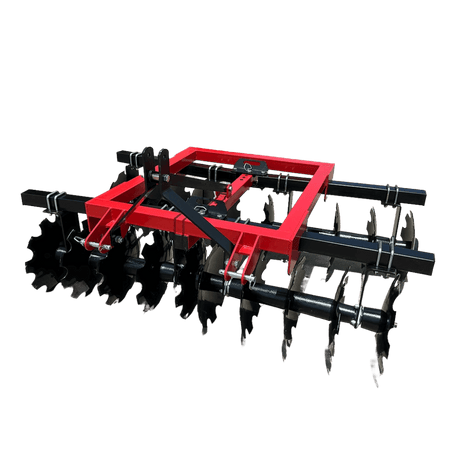

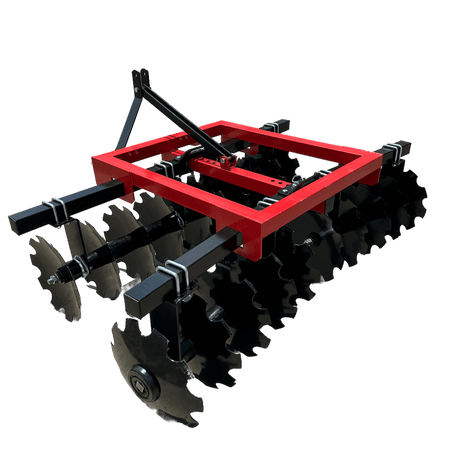

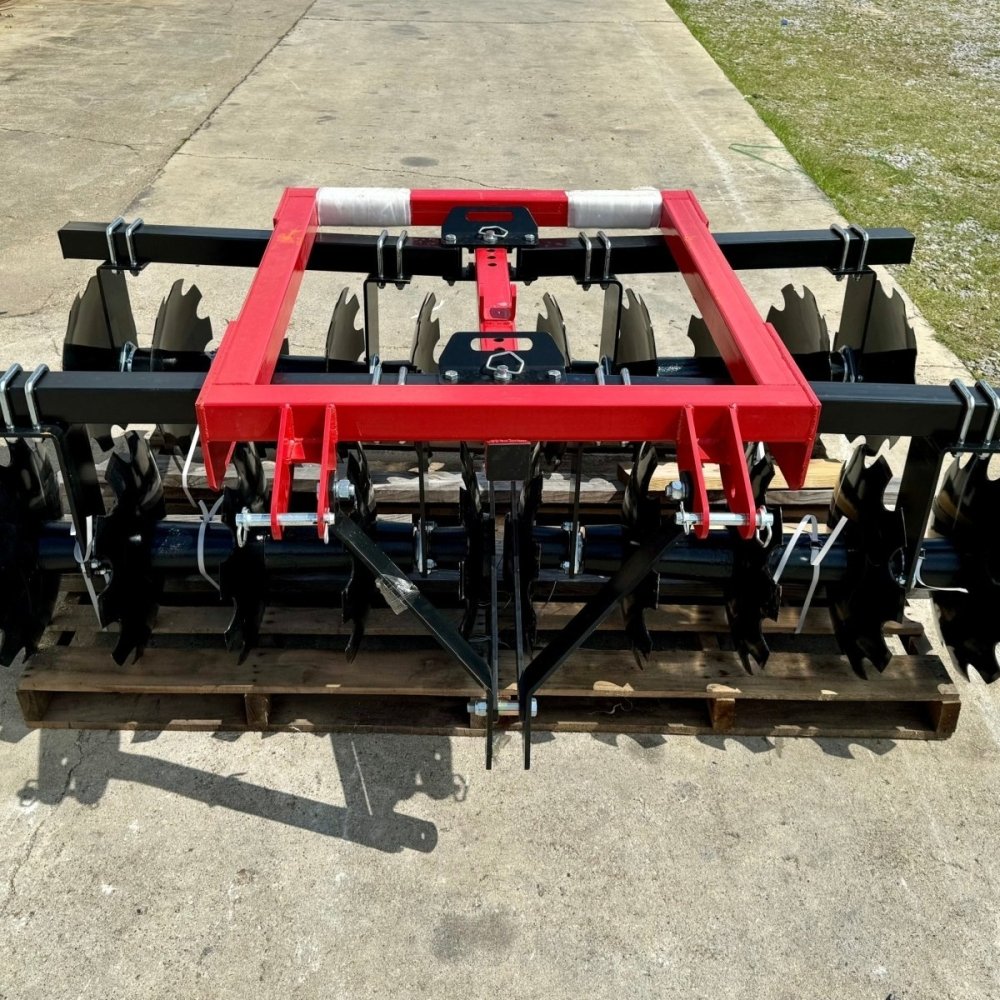

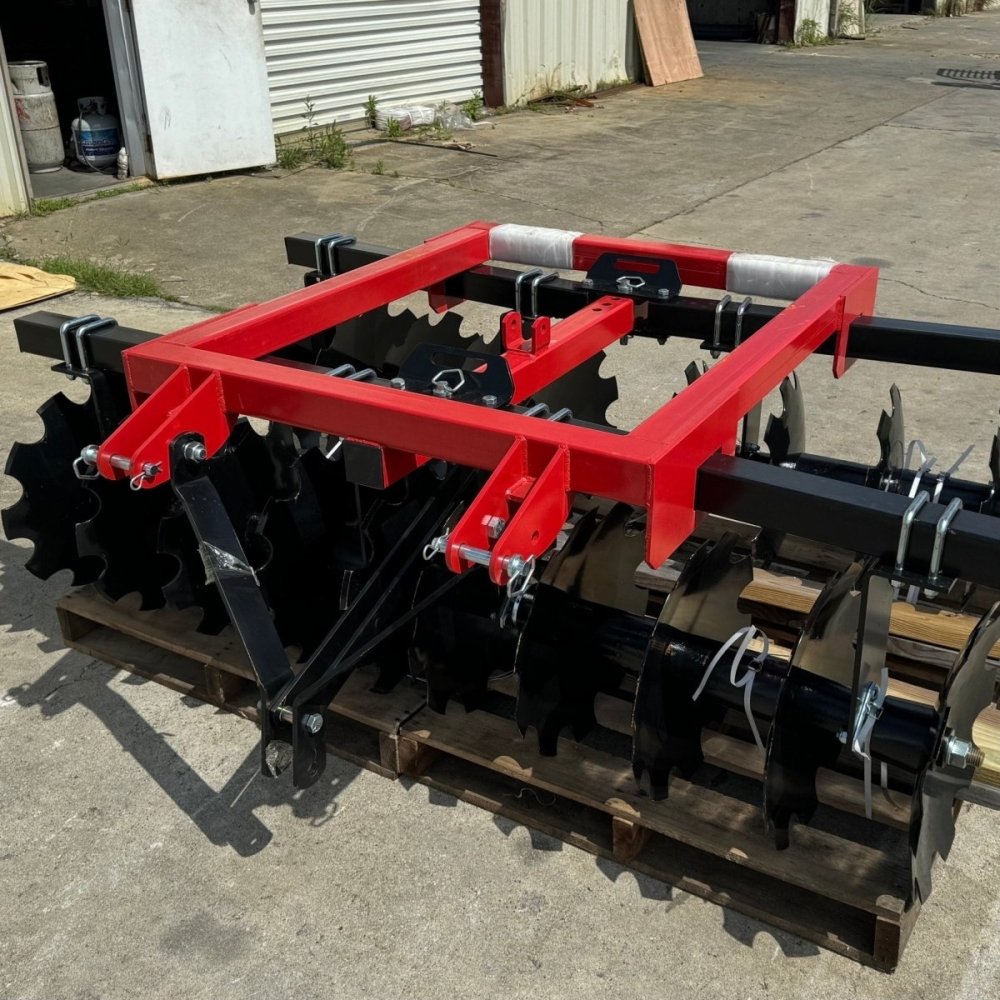

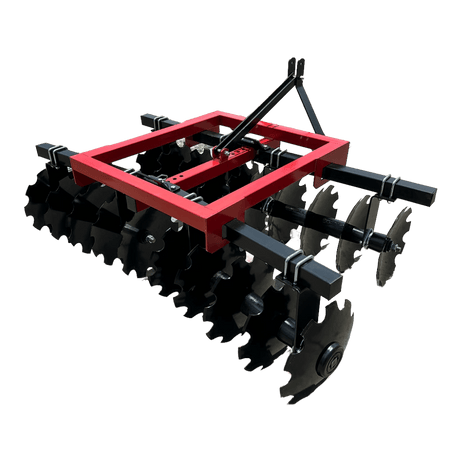

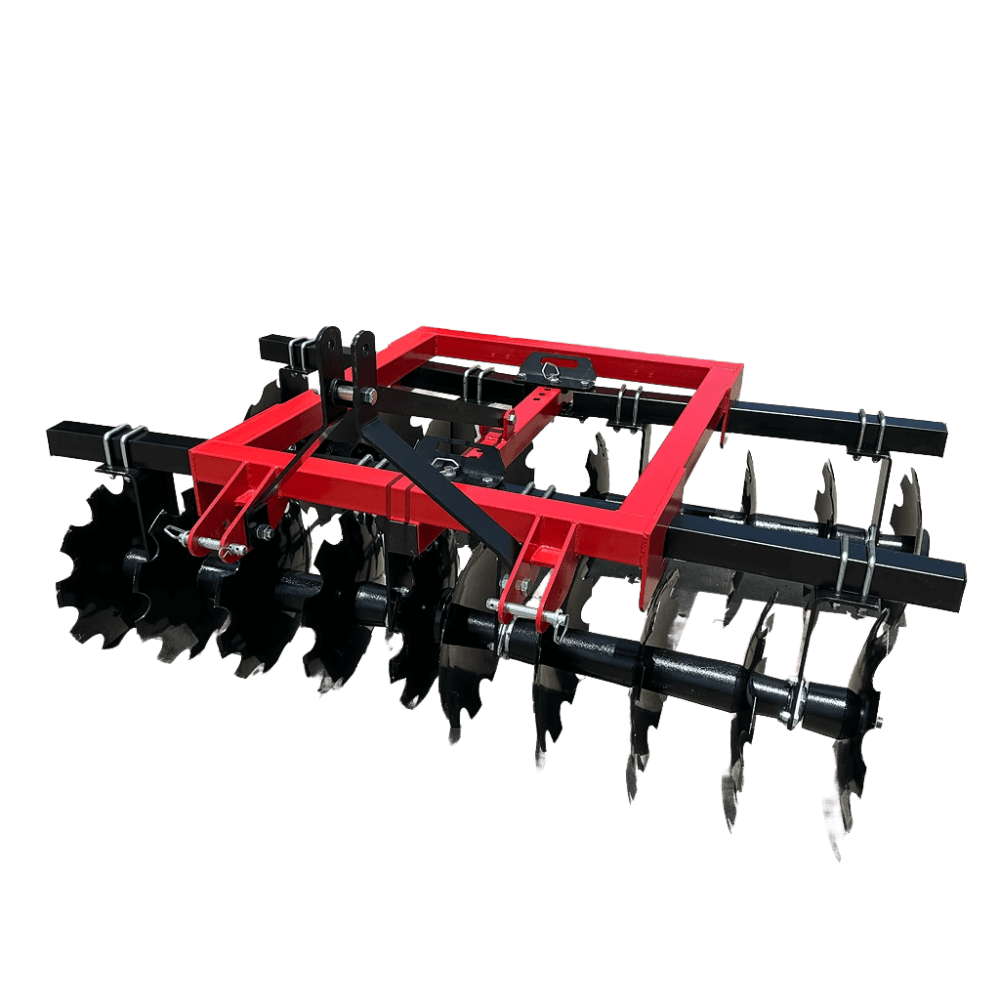

FMCDH-H90 Heavy Disc Harrows

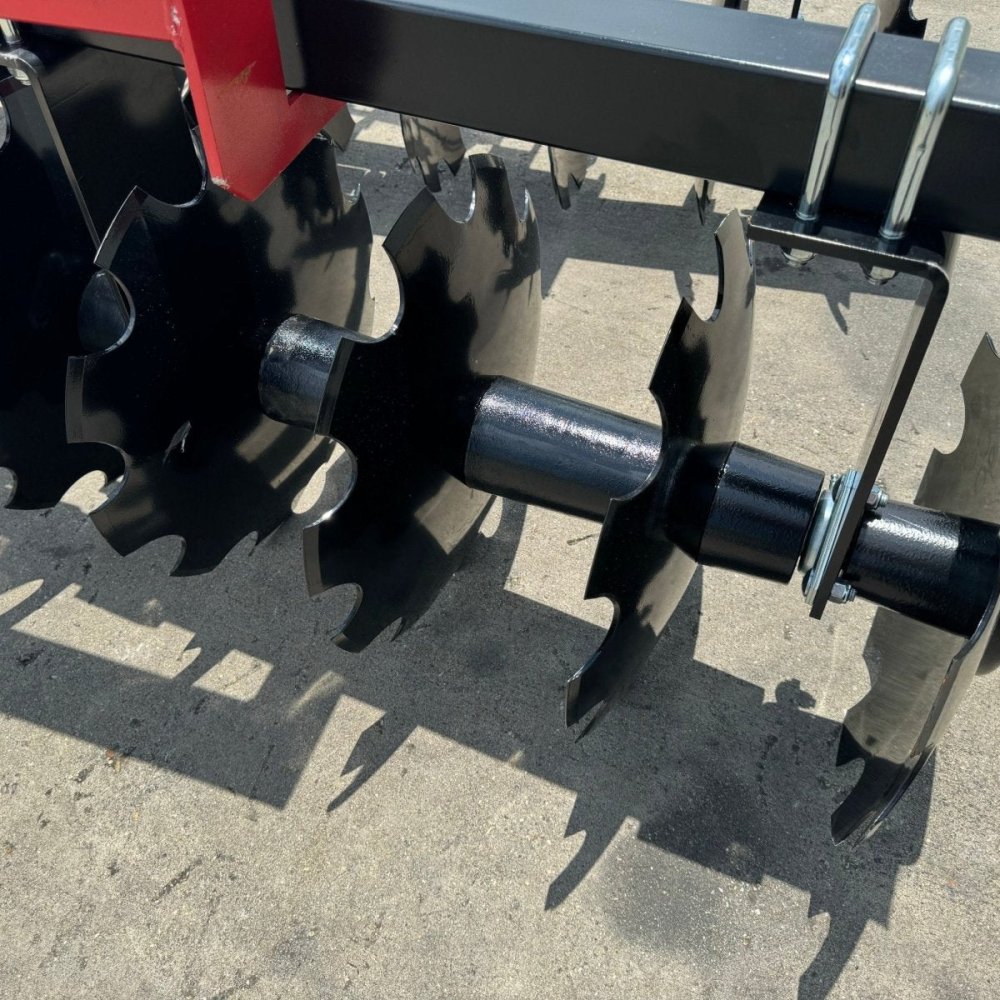

Wolverine disc harrows are made by strong frame tubing, reinforced metal gangs, high strength castings, and heavy-duty sealed bearing to rip the soils for planting easily, qualified heat-treated disc blades for the long and lasting time under application. Front and rear reinforced gang is adjustable for different angles. Category 1 and or 2 quick hitch hookup is available. Durable, corrosion-resistant powder coat finished is standard.
NOTE: Know your tractor’s capabilities before using this equipment. Never exceed the manufacturer’s recommended equipment handling capabilities when using 3-Point Equipment.
| FIMIC Disc Harrows Specifications | ||

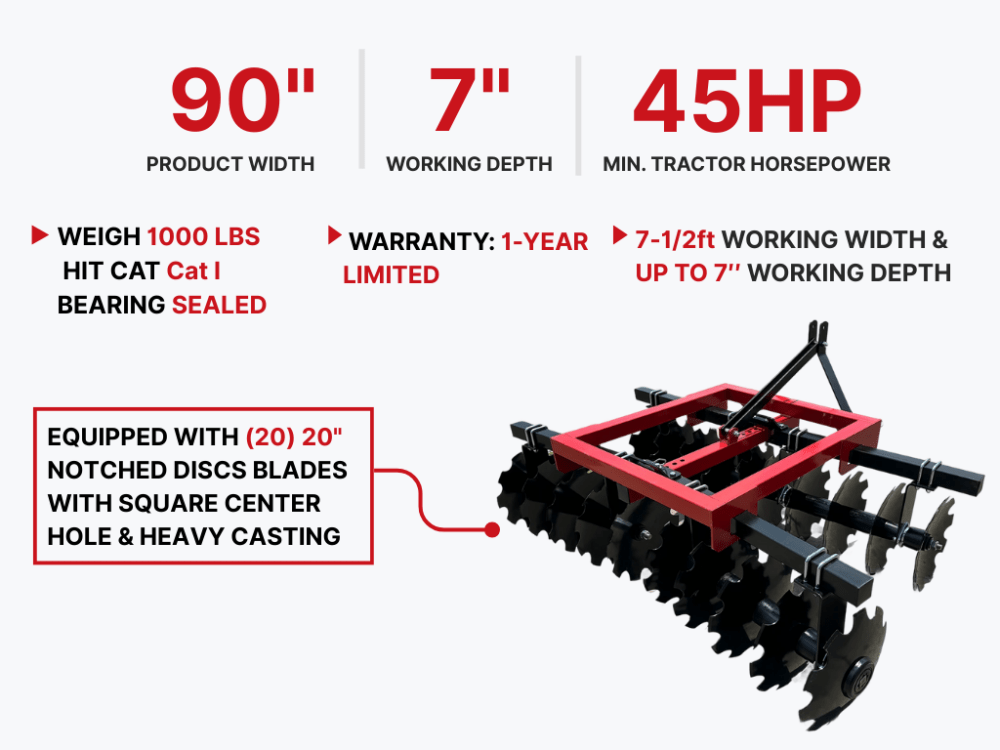

| Model Number | FMCDH-H90 | |
| 3-Point Hitch Type | CAT. 1, Fits Quick Hitch | |
| Horse Power Rating | 40-100 HP | |

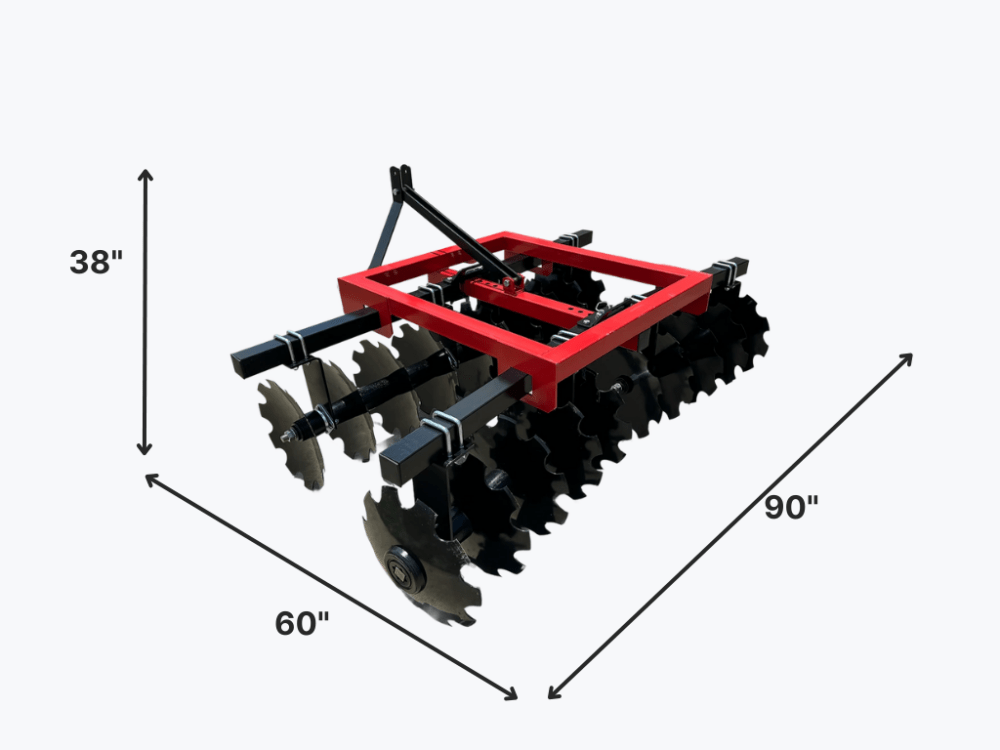

| Cultivation Width | 90" | |
| Hight | 42" | |
| Disc Blade Dia. | 20" | |
| No. of Disc Blade | 20" | |
| Disc Blade Types | Notched | |
| Disc Blade Spacing | 9" | |
| Bearing Hanger | 1/2" Plate, 2 each 5/8" u-bolts | |
| Bearing Type, 2 per gang | 1-1/8" Square Bore | |
| Disc Angle/ Front |
Front Gang: 0,7,14 & 21 degrees with angling adjustment handle. |
|
| Disc Angle/ Rear |
Rear Gang: 7,14 & 21 degrees with angling adjustment handle. |
|
| Frame Tube | 3" Square | |
| Gang Tube | 4" x 3" | |
| Gang Axle | 1-1/8" Square High Carbon Steel | |
| Weight/lbs | 964 | |
Due to the size and/or weight of this product, it must be shipped via Motor Freight Truck only. Someone must be present for delivery. Please contact us for shipping charge details.
