Spartan® 3000 PSI Tie-Rod Cylinder 4" Bore x 10" Stroke x 1.5" Rod Diameter
Spartan® 3000 PSI hydraulic cylinders are constructed of high strength steel, durable chrome plated rods, endurance tested seal packages to 50,000 cycles, and are 100% performance tested to assure leak free use in any industry. All Spartan cylinders are able to be used in double and single acting applications. This cylinder features a 4" bore diameter, 10” stroke length, 1.5” hard chrome rod, 1" clevis pins, and is painted black.
| Spartan® 3000 PSI Tie-Rod Cylinder Specifications | ||
| Bore Diameter | 4" | |
| Stroke Length | 10" | |
| Rod Diameter | 1.5" | |
| Retracted Length | 20-1/4" | |
| Extended Length | 30-1/4" | |
| Pin Diameter | 1" | |
| Port Size | SAE 8 (3/4-16" UNF) | |
| Working Pressure (maximum) | 3000 PSI | |
| Operating Temperature Range (maximums) | -30 to 110 °C (-22 to 230 °F) | |
| Weight | 44.84 lbs. | |
| Column Load | 37680 lbs. | |

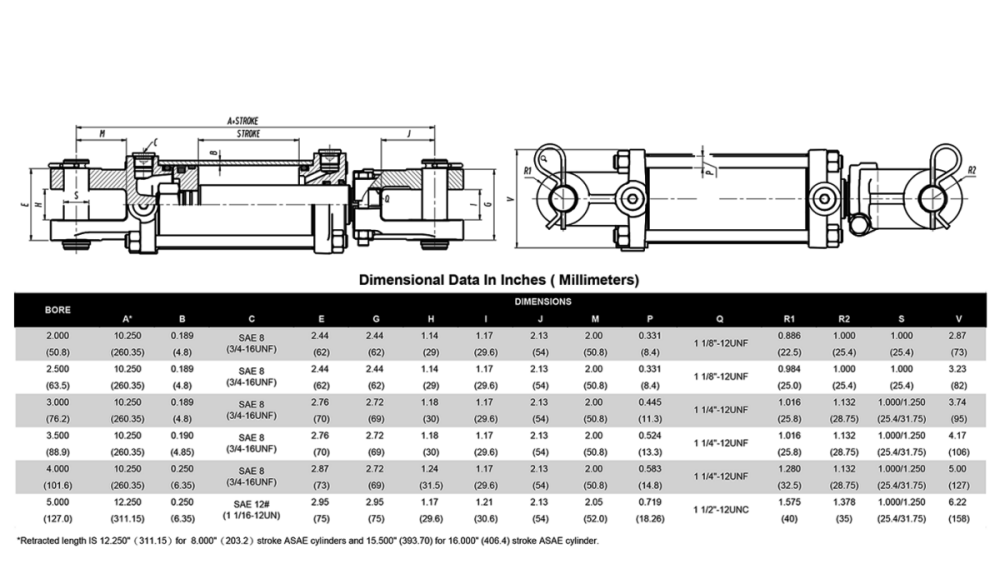

| E | 2.87" | |
| G | 2.72" | |
| H | 1.24" | |
| I | 1.17" | |
| V | 5.00" | |
