Spartan® 3000 PSI Welded Clevis Cylinder 2.5" Bore x 16" Stroke x 1.5" Rod Diameter
Spartan® 3000 PSI hydraulic cylinders are constructed of high strength steel, durable chrome-plated rods, endurance tested seal packages to 50,000 cycles, and are 100% performance tested to assure leak-free use in any industry. All Spartan cylinders are able to be used in double and single acting applications. This cylinder features a 2.5" bore diameter, 16” stroke length, 1.5” hard chrome rod, 1" clevis pins, and is painted black.
| Spartan® 3000 PSI Welded Clevis Cylinder Specifications | ||
| Bore Diameter | 2.5" | |
| Stroke Length | 16" | |
| Rod Diameter | 1.5" | |
| Retracted Length | 26-1/4" | |
| Extended Length | 42-1/4" | |
| Pin Diameter | 1" | |
| Port Size | SAE8 | |
| Working Pressure (maximum) | 3000 PSI | |
| Operating Temperature Range (maximums) | -20 to 100 °C (-4 to 212 °F) | |
| Weight | 28.24 lbs. | |
| Column Load | 9420 lbs. | |

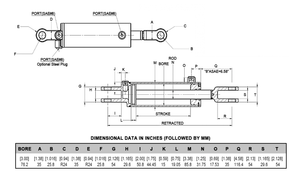

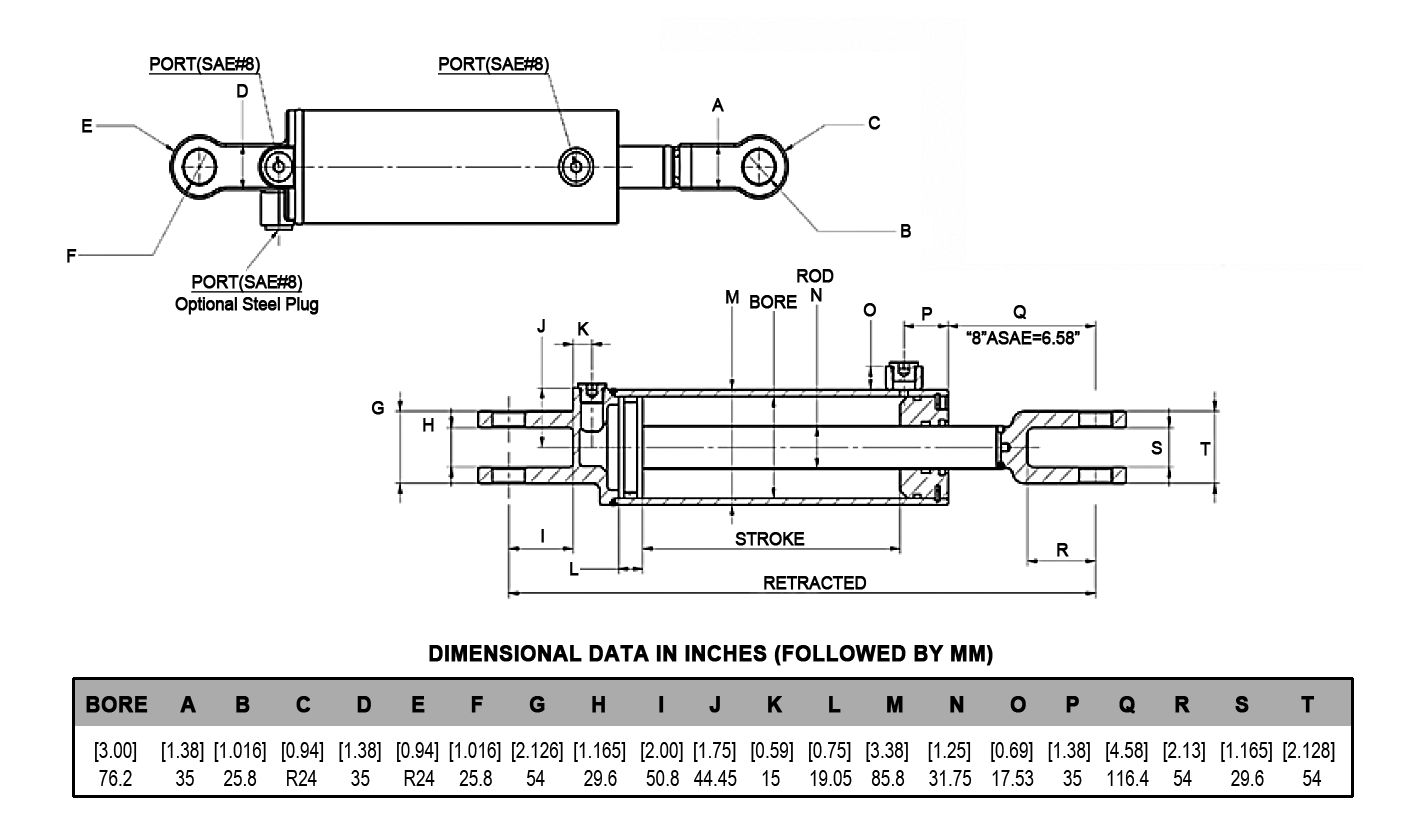

| E | 2.125" | |
| G | 2.125" | |
| H | 1.125" | |
| I | 1.125" | |
